SKU:
CN AC-NGX-1-ISO
€ 311,12
1-2 weeks delivery time
-
+
The NGX-1 NMEA 2000 Dual Gateway ISO is a versatile device that integrates NMEA 2000 networks with PCs while enabling bidirectional conversion between NMEA 0183 and NMEA 2000. It offers compatibility with various communication protocols and is ideal for seamless data exchange between different systems.
- Description
- Ask a Question
-

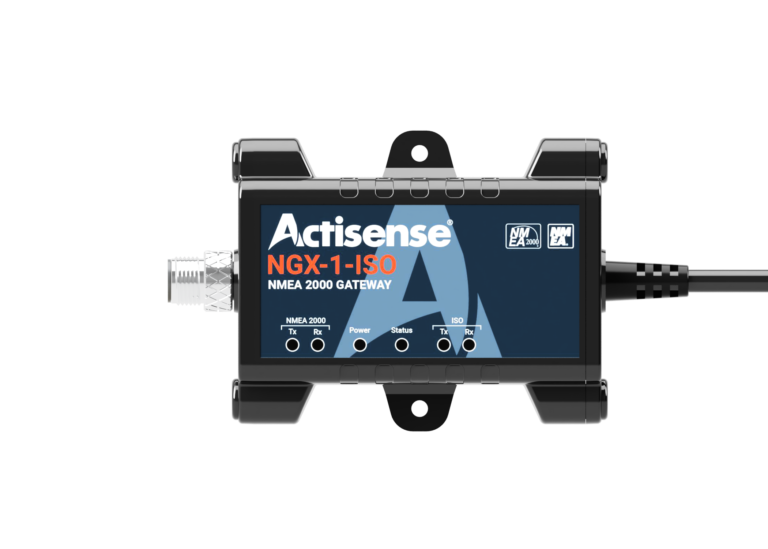

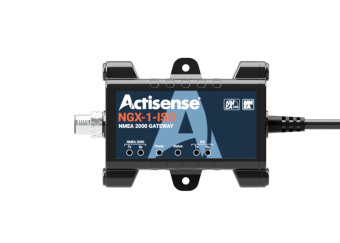

NGX-1 NMEA 2000 Dual Gateway ISO
The NGX-1 NMEA 2000 Dual Gateway ISO is a versatile and intelligent multi-function device, combining the functionality of two previous generation products (NGT-1 and NGW-1) into a single, cost-effective solution. This gateway enables seamless integration between NMEA 2000 networks and PCs, and also allows for bidirectional conversion between NMEA 0183 and NMEA 2000 data.
- Power Supply:
- Supply Voltage (NMEA 2000 Port): 9 to 30V DC
- Supply Current (NMEA 2000 Port): 62mA @ 9V DC
- Load Equivalent Number (LEN): 2
- ISO Port Compatibility:
- Full NMEA 0183, RS232 & RS422 compatibility
- RS485 Listener compatible
- Speed/Baud Rate: 4800 to 230400 Baud
- Output Voltage Drive: >= 2.1V (differential) into 100Ω
- Output Current Drive: 20mA max.
- Output Protection: Short circuit and ESD
- Input Voltage Tolerance: -15V to +15V continuous, -35V to +35V short term (<1 second)
- Input Protection: Current limited and overdrive protection to 40VDC
- Connectivity:
- 5mm stripped and tinned wire
- Cable Length: 0.75m
- Power Supply:
-
