€ 500,91
1-2 weeks delivery time
-
+
The Quick Electric Shut-Off Valve 24V 1" Series 9399 is a robust valve for water and diesel applications with a nickel-plated brass body and stainless steel parts. It is Normally Closed with emergency manual override, handles up to 4 bar differential pressure at 40°C, and has a flow capacity of 3350 L/h.
- Description
- Ask a Question
-

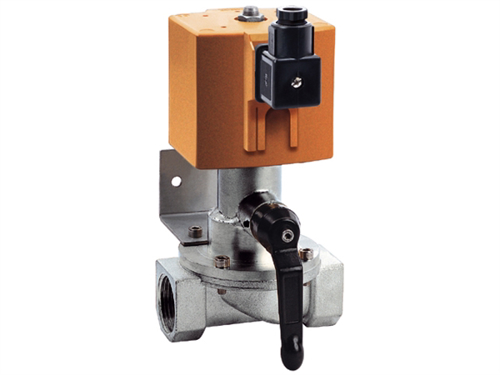

Quick Electric Shut-Off Valve 24V 1" 3350 L/h, Max. 4 Bar, Series 9399
Robust electric shut-off valve suitable for water and diesel applications. Features a nickel-plated brass body and stainless steel wetted parts. Designed as Normally Closed (NC) with an emergency manual override option. Offers high flow rates and can handle differential pressures up to 4 bar at 40°C.
- Order number: 00632415
- Supplier code: FEEL10230000A00
- Barcode: 8057090045789
- Voltage: 24 V
- Power: 60 W
- Inlet/Outlet diameter: 1''
- Flow capacity: 3350 L/h @ 0.06 bar differential pressure
- Maximum flow: 10000 L/h @ 1 bar differential pressure
- Maximum differential pressure: 4 bar @ 40°C
- Weight: 3 kg
-
