SKU:
TN 00632411
€ 105,20
1-2 weeks delivery time
-
+
The Quick Electric Shut-Off Valve 24V 1/2" Series 9300 is a compact valve designed for water and diesel use, constructed with brass and stainless steel parts. It is Normally Closed, includes manual override, supports flow rates up to 400 L/h, and max differential pressure of 1.5 bar at 40°C.
- Description
- Ask a Question
-

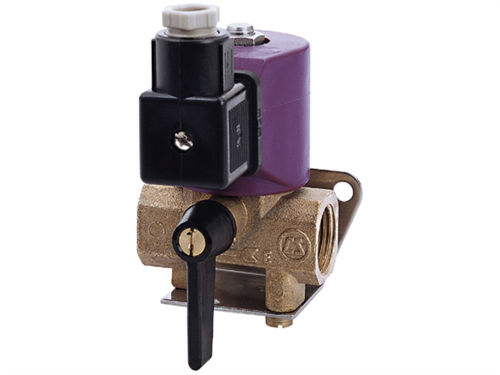

Quick Electric Shut-Off Valve 24V 1/2" 100 L/h, Max. 1.5 Bar, Series 9300
Compact electric shut-off valve ideal for water and diesel use. Constructed with a brass body and stainless steel wetted parts, it is Normally Closed (NC) and allows manual override in emergencies. Supports moderate flow rates and differential pressures up to 1.5 bar at 40°C.
- Order number: 00632411
- Supplier code: FEEL05210000A00
- Barcode: 8057090045758
- Voltage: 24 V
- Power: 12 W
- Inlet/Outlet diameter: 1/2''
- Flow capacity: 100 L/h @ 0.06 bar differential pressure
- Maximum flow: 400 L/h @ 1 bar differential pressure
- Maximum differential pressure: 1.5 bar @ 40°C
- Weight: 0.5 kg
-
