Scanstrut SC-CW-10GT ROKK 3 Coil Cove Charger With LED Lighting 15W (12/24V)

Scanstrut SC-CW-10GT - ROKK 3 Coil Cove Charger With LED Lighting 15W (12/24V)

The upgraded ROKK 3 Coil Cove Charger delivers advanced wireless performance in a durable, waterproof design. Its three overlapping coils maximize power delivery and ensure reliable charging from multiple phone positions, making it ideal for boats, vehicles, and outdoor adventures.

• Equipped with a 3-coil system that eliminates dead zones and ensures maximum charging efficiency, regardless of phone placement.
• Features an intelligent charging system that automatically selects the best coil and adjusts charging speed based on phone position and temperature.
• Integrated heat management system regulates performance in hot climates, effectively dissipating heat even in 30°C (86°F) conditions.
• Easy installation with a single cut, four supplied screws, and a clean front fascia for a neat finish.
• Rounded corners and tapered design prevent snagging, allowing installation in high-traffic areas.
• LED light system provides instant feedback—red light for standby and white for active charging.
• Rear LED light simplifies installation by confirming correct power connection.
• Self-draining system prevents water ingress, with options for front or rear drainage and a push-fit tube for routing water away.
• Dual functionality with Foreign Object Detection ensures charging starts only when a phone is detected, protecting other stored items.

Key Features:

• 12/24V compatibility
• 15W wireless charging output
• IPX6 waterproof rating
• Qi compatible
• Store and charge functionality
• Input Voltage Range: 10-30V DC (12/24V system)
• Three overlapping charging coils for consistent power delivery
• Reverse polarity protection
• No alignment needed—simply place the phone inside to charge
• Uninterrupted charging for outdoor environments
• Rear LED installation light for wiring verification
• Visual LED charging indicator
• Quick one-cut installation
• Foreign object detection
• 5-year warranty

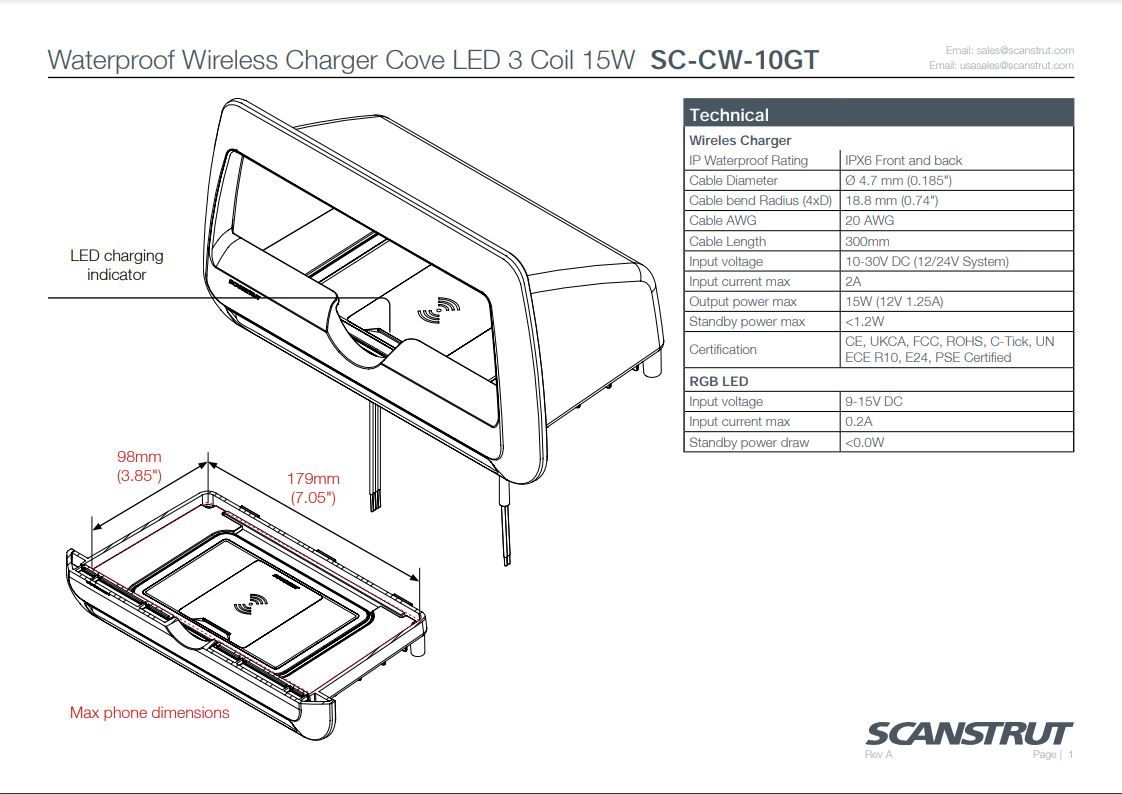

Charger Electrical Information:

• Input Voltage Range: 10-30V DC (12/24V system)
• Input Current Max: 2A
• Output Power: 15W (12V 1.25A)
• Standby Power Draw: <1.2W
• Certification: CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE Certified

RGB LED Electrical Information:

• Input Voltage: 9-15V DC
• Input Current Max: 0.2A
• Standby Power Draw: <0.0W

Item number: SCSC-CW-10GT
