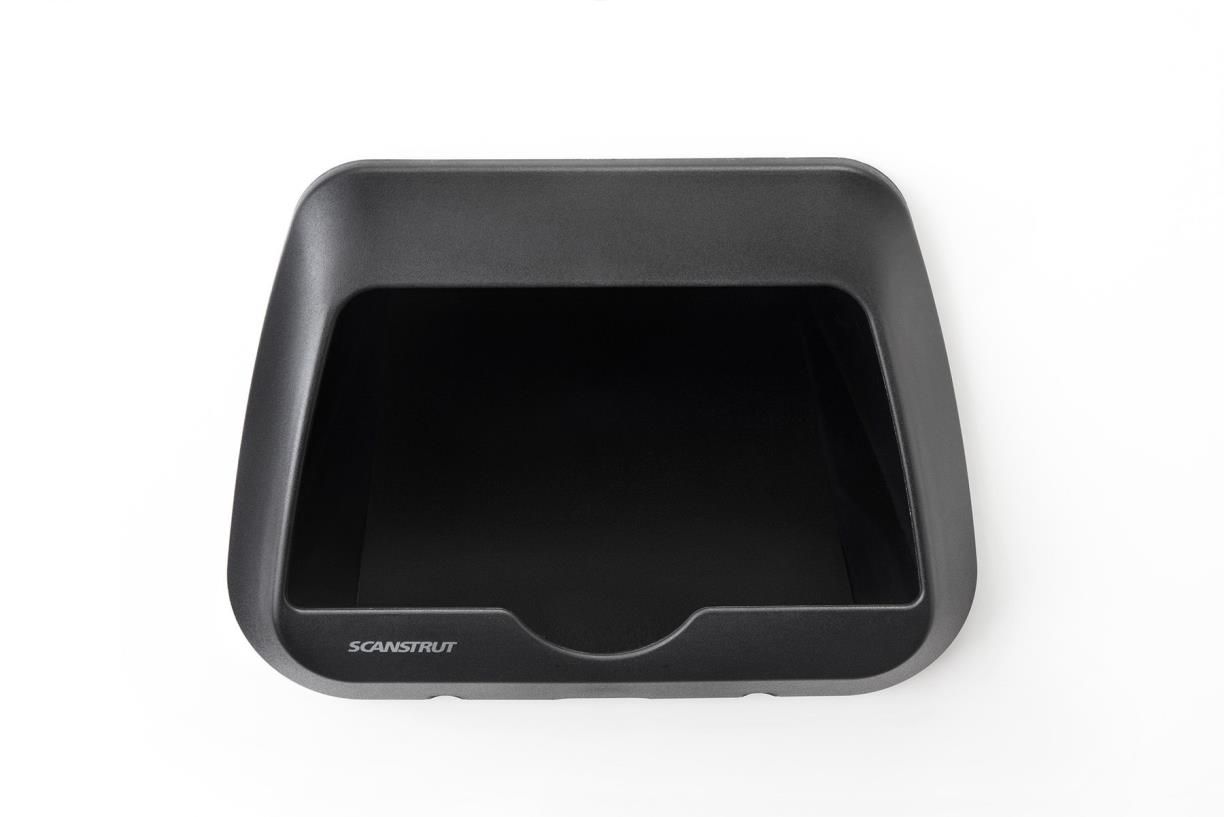

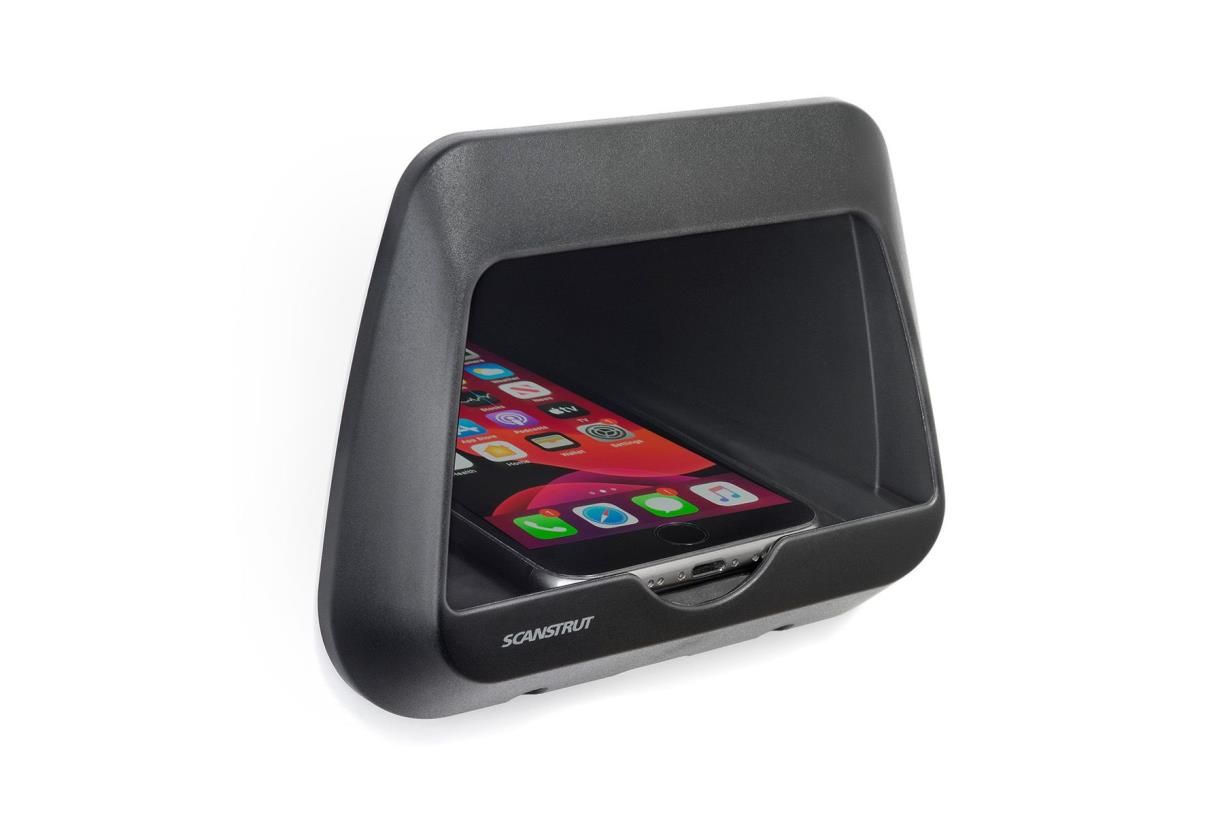

Scanstrut SC-CW-6GT ROKK 3 Coil Nest Charger 15W (12/24V)

Scanstrut SC-CW-6GT - ROKK 3 Coil Nest Charger 15W (12/24V)

The ROKK 3 Coil Nest Charger 15W (12/24V) from Scanstrut introduces a powerful and updated charging solution. It combines waterproof outdoor charging with intelligent coil selection and temperature management for maximum performance and safety.

• Three overlapping charging coils maximize power transfer from multiple phone positions.
• Intelligent electronics automatically select the optimal coil based on phone placement for efficient charging.
• Advanced heat management adjusts charging speed according to both ambient and device temperature.

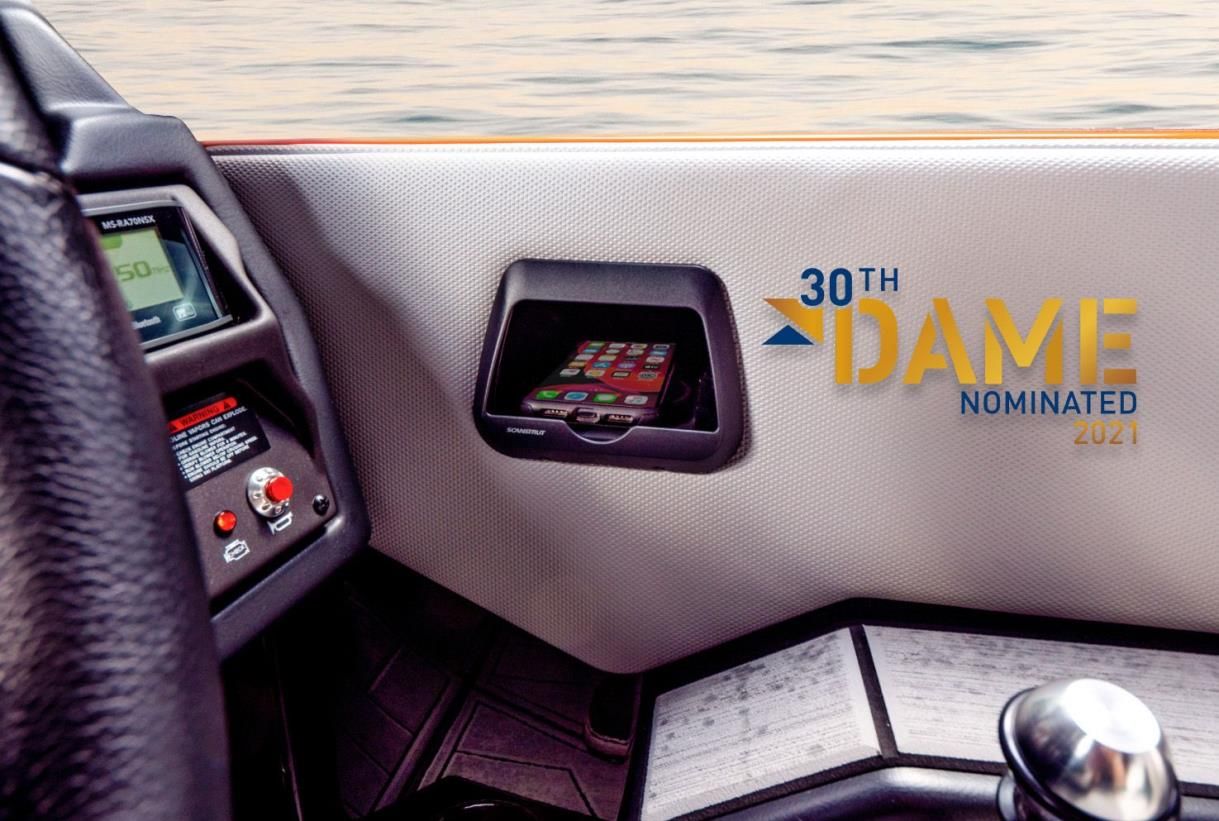

• Perfect for uninterrupted power supply during marine and vehicle adventures.
• Intelligent charging: Ensures continuous charging by mirroring phone movement, maintaining connection even on rough terrain.
• Three-coil system: Overlapping design eliminates dead zones and ensures high-efficiency power transfer.
• Hot climates: Thermal management cavity dissipates heat effectively, maintaining performance in 30°C (86°F) conditions while preventing overheating.
• LED light system:
  • Top LED shows power delivery status.
  • Rear LED serves as an installation test light for easy setup verification.
  • Red light: Charger is in standby mode.
  • White light: Phone is charging.

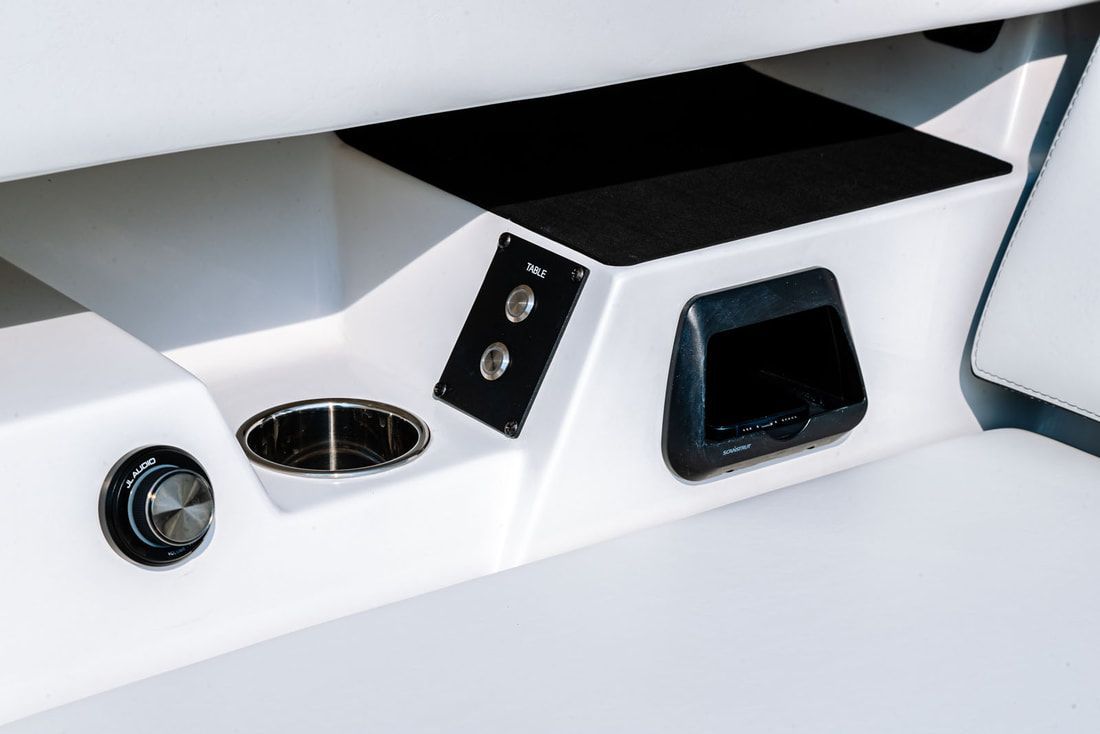

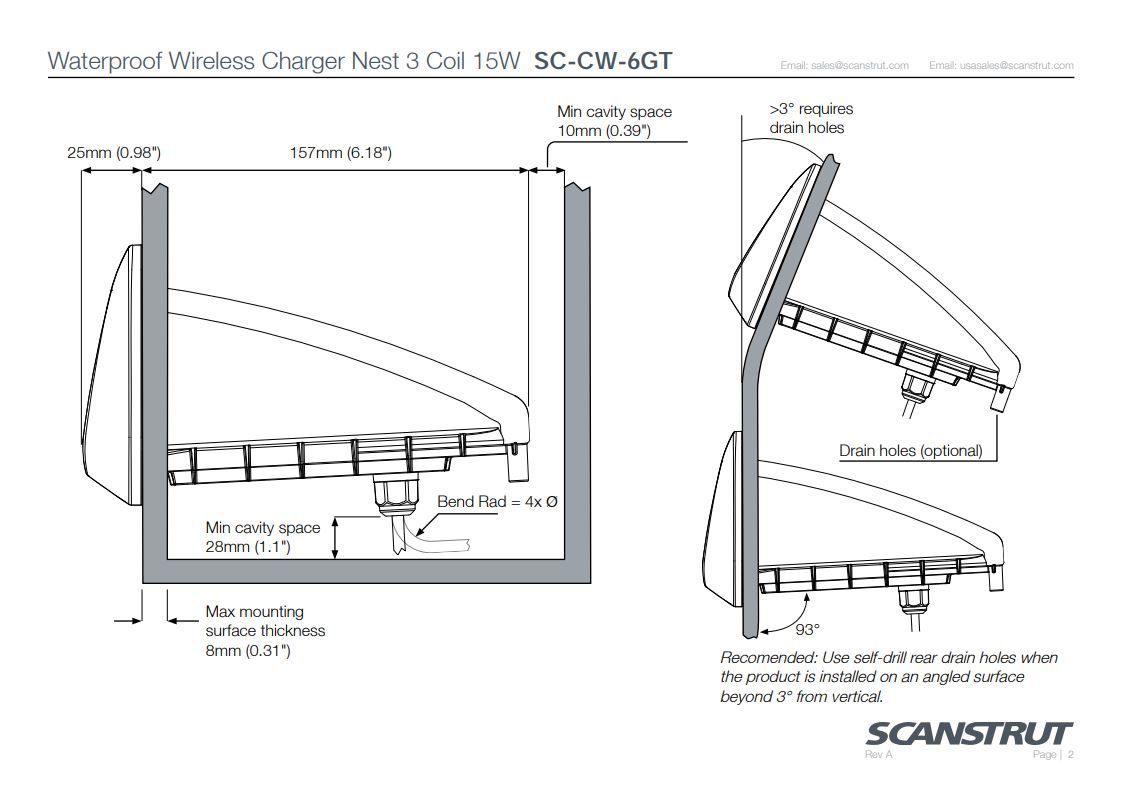

• Simple install: Requires one easy cut, includes 4 fixing screws, and features a clean front fascia for a tidy appearance. Rounded corners and tapered front reduce snagging risks, allowing safe use in high-traffic areas.
• Wash down: Integrated drainage system prevents water buildup, with self-drill drains and optional push-fit drain tube for routing water away.

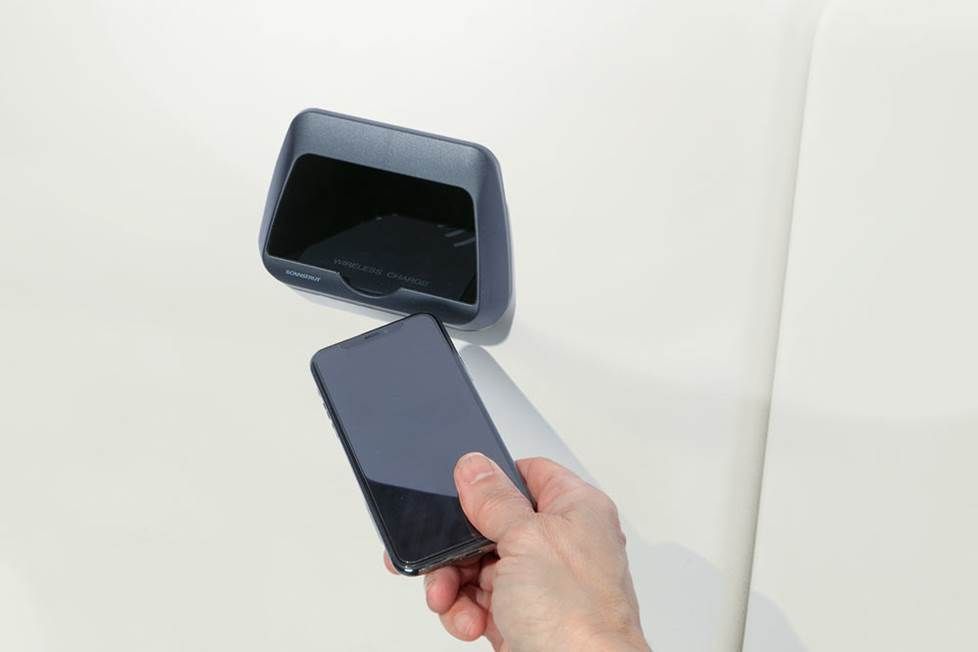

• Dual functionality: Intelligent Foreign Object Detection ensures safe use for storing items like wallets and keys, activating only when a phone is placed on the mat.

Key Features:

• 12/24V operation
• 15W wireless charging output
• IPX6 waterproof construction
• Qi compatible
• Input Voltage Range: 10-30V DC (12/24V system)
• Three overlapping charging coils for optimal performance
• Reverse polarity protection
• No alignment required for charging
• Uninterrupted performance during outdoor activities
• Rear LED installation light for wiring verification
• LED indicators for charging status
• Simple single-cut installation
• Foreign object detection
• 5-year warranty

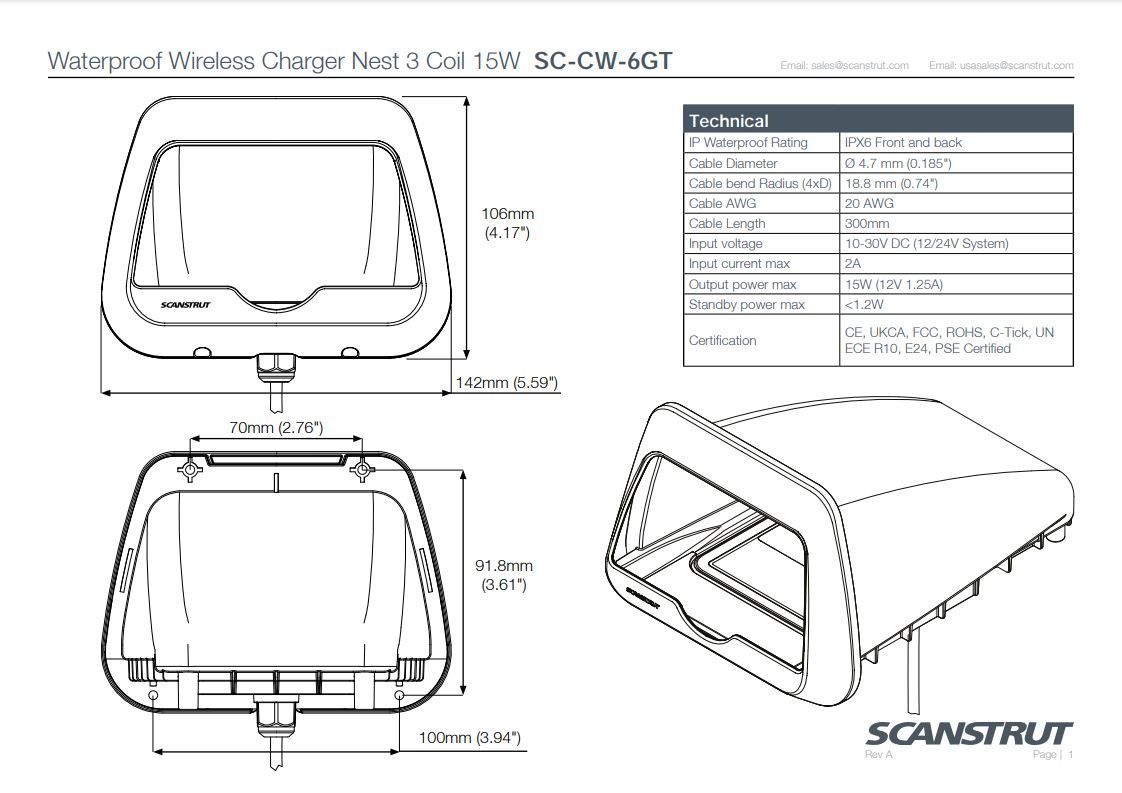

Electrical Information:

• Input Voltage Range: 10-30V DC (12/24V system)
• Input Current Max: 2A
• Output Power: 15W (12V 1.25A)
• Standby Power Draw: <1.2W
• Certification: CE, UKCA, FCC, ROHS, C-Tick, UN ECE R10, E24, PSE Certified

Item number: SCSC-CW-6GT
