ID
1403941
$ 2.79
1-2 weeks delivery time
Diameter, mm:
- 2.9
- 3.5
- 3.9
- 4.2
- 4.8
Length, mm:
- 13
- 16
- 19
- 25
- 32
- 45
Item:
- 5 pcs
- 10 pcs
- 15 pcs
- 20 pcs
- 25 pcs
TREM stainless steel self-tapping screws feature a raised countersunk head with a cross-recessed drive and a pointed threaded shaft. The tapered underside allows the head to sit in a suitable countersunk hole, while its slightly rounded top remains visible above the mounting surface. Made from corrosion-resistant stainless steel, these screws are suitable for compatible marine fittings, panels, trim and general fastening applications. Available in five diameters from 2.9 to 4.8 mm and lengths from 13 to 45 mm, with packaging quantities of 5 to 25 pieces depending on the selected size.
- Description
- Ask a Question
-
TREM Stainless Steel Raised Countersunk Cross Head Self-Tapping Screws
TREM self-tapping screws are manufactured from stainless steel and feature a raised countersunk head with a cross-recessed drive. Their pointed, threaded shaft is designed to form a fastening connection in compatible materials.

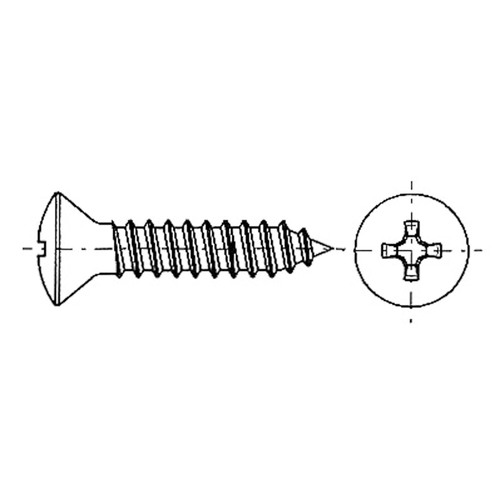

The raised countersunk head combines a tapered underside with a slightly rounded top. It fits into a suitable countersunk mounting hole while leaving a low, rounded profile above the surface. The cross recess allows installation using a compatible screwdriver or driver bit.
The stainless steel construction provides corrosion resistance for compatible marine fittings, panels, interior trim and general outdoor fastening applications.
The screws are available in five nominal diameters: 2.9, 3.5, 3.9, 4.2 and 4.8 mm. Lengths range from 13 to 45 mm, depending on the selected diameter. Packaging quantities vary from 5 to 25 pieces per box.
Technical Specifications
Brand TREM Product Type Self-Tapping Screw Material Stainless Steel Head Type Raised Countersunk Head Drive Type Cross-Recessed Thread Type Self-Tapping Nominal Diameters 2.9, 3.5, 3.9, 4.2, 4.8 mm Available Lengths 13, 16, 19, 25, 32, 45 mm Pack Quantities 5, 10, 15, 20, 25 pcs Number of Variants 13
Features and Applications
- Stainless steel construction for corrosion resistance.
- Raised countersunk head with a slightly rounded top.
- Cross-recessed drive for installation with a suitable screwdriver.
- Pointed tip and self-tapping thread.
- Suitable for compatible countersunk mounting holes.
- Designed for fastening marine fittings, panels, trim and other components.
- Available in five diameters from 2.9 to 4.8 mm.
- Lengths from 13 to 45 mm.
- Supplied in boxes containing 5 to 25 screws.
Available Sizes and Part Numbers
TREM Part No. Diameter Length Quantity E5029013 2.9 mm 13 mm 25 pcs E5029019 2.9 mm 19 mm 25 pcs E5035013 3.5 mm 13 mm 20 pcs E5035016 3.5 mm 16 mm 20 pcs E5039019 3.9 mm 19 mm 20 pcs E5039025 3.9 mm 25 mm 15 pcs E5042016 4.2 mm 16 mm 15 pcs E5042019 4.2 mm 19 mm 15 pcs E5042025 4.2 mm 25 mm 10 pcs E5042032 4.2 mm 32 mm 10 pcs E5048025 4.8 mm 25 mm 10 pcs E5048032 4.8 mm 32 mm 10 pcs E5048045 4.8 mm 45 mm 5 pcs
Size Selection and Installation
Select the required screw diameter and length according to the material thickness and mounting arrangement. The raised countersunk head requires a suitable countersunk seating surface.
Check the mounting hole dimensions and installation requirements for the material being fastened. The exact stainless steel grade, cross-drive specification and DIN/ISO standard are not stated in the supplied product information.
-
