ID
1404124
$ 2.79
1-2 weeks delivery time
Diameter, mm:
- 2.9
- 3.5
- 3.9
- 4.8
Length, mm:
- 13
- 16
- 19
- 25
- 32
- 38
Item:
- 8 pcs
- 10 pcs
- 15 pcs
- 20 pcs
- 25 pcs
TREM stainless steel self-tapping screws feature a flat countersunk head with a cross-recessed drive and a pointed threaded shaft. The tapered head is designed to sit flush with a suitably countersunk mounting surface, providing a neat finish for compatible marine fittings, panels and hardware installations. Available in four nominal diameters from 2.9 to 4.8 mm and lengths from 13 to 38 mm. Supplied in boxes containing 8 to 25 screws, depending on the selected size.
- Description
- Ask a Question
-

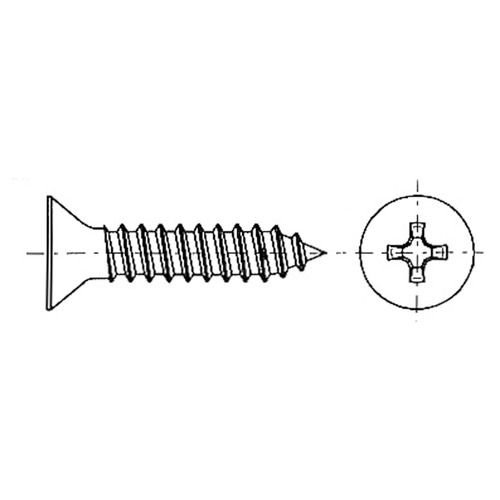

TREM Stainless Steel Cross-Recessed Countersunk Head Self-Tapping Screws
TREM self-tapping screws are manufactured from stainless steel and feature a flat countersunk head with a cross-recessed drive. Their pointed threaded shaft is designed to form a fastening connection in compatible materials.
The tapered underside of the screw head allows it to sit flush with a suitably countersunk mounting surface. The cross recess provides convenient installation using a compatible screwdriver or driver bit.
Stainless steel construction offers corrosion resistance for marine fittings, equipment panels, trim and general outdoor fastening applications.
The range includes four nominal screw diameters: 2.9, 3.5, 3.9 and 4.8 mm. Available lengths range from 13 to 38 mm, with box quantities varying according to the selected size.
Technical Specifications
Brand TREM Product Type Self-Tapping Screw Material Stainless Steel Head Type Flat Countersunk Drive Type Cross-Recessed Thread Type Self-Tapping Nominal Diameters 2.9, 3.5, 3.9, 4.8 mm Available Lengths 13, 16, 19, 25, 32, 38 mm Pack Quantities 8, 10, 15, 20, 25 pcs Number of Variants 11
Features and Applications
- Manufactured from corrosion-resistant stainless steel.
- Flat countersunk head for flush mounting.
- Cross-recessed drive for installation with a suitable screwdriver.
- Pointed tip and self-tapping thread.
- Suitable for compatible marine fittings, panels and equipment assemblies.
- Available in four nominal diameters from 2.9 to 4.8 mm.
- Lengths from 13 to 38 mm.
- Supplied in boxes containing 8 to 25 screws.
Available Sizes and Part Numbers
TREM Part No. Diameter Length Quantity E5129130 2.9 mm 13 mm 25 pcs E5129190 2.9 mm 19 mm 20 pcs E5129250 2.9 mm 25 mm 20 pcs E5135130 3.5 mm 13 mm 20 pcs E5135160 3.5 mm 16 mm 20 pcs E5139160 3.9 mm 16 mm 20 pcs E5139250 3.9 mm 25 mm 15 pcs E5139320 3.9 mm 32 mm 10 pcs E5148250 4.8 mm 25 mm 10 pcs E5148320 4.8 mm 32 mm 8 pcs E5148380 4.8 mm 38 mm 8 pcs
Size Selection and Installation
Select the required screw diameter and length according to the mounting material and installation depth. The flat countersunk head requires a suitable countersunk seating surface for flush installation.
Check the recommended mounting hole and screwdriver size before installation. The exact stainless steel grade, cross-drive specification and DIN/ISO standard are not provided in the supplied catalogue.
-
