ID
1403819
$ 107.23
1-2 weeks delivery time
Color:
- Black
- White
Item:
- 100 pcs

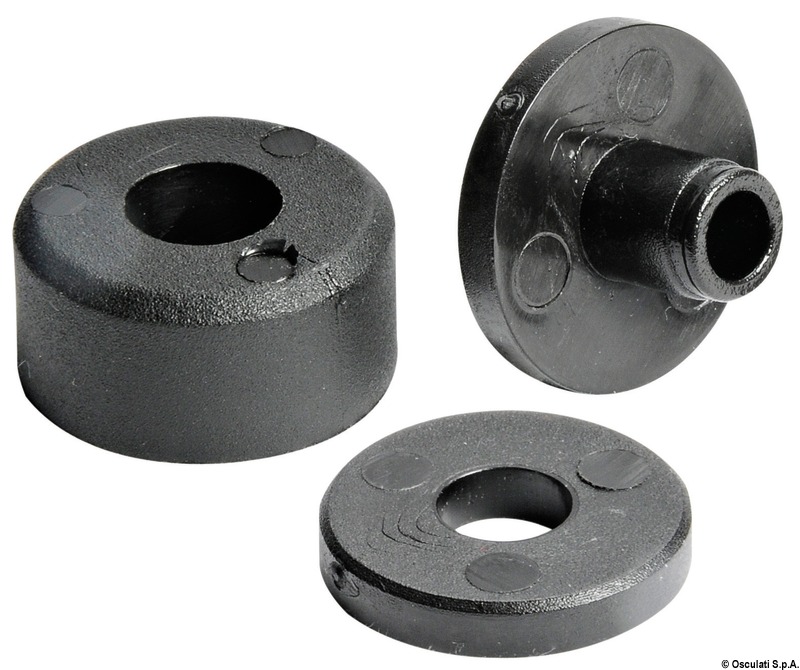

Osculati glass stop spacers are designed for securing and positioning windscreens. Each spacer features a cylindrical body and a flanged mounting base with a Ø20 mm outer diameter and a Ø4.4 mm mounting hole. The spacer measures 10 mm in height and features a Ø7 mm central section. The mounting component has an overall height of 11.2 mm. Available in White and Black, both versions have identical dimensions and are supplied in boxes containing 100 pieces.
- Description
- Ask a Question
-
Osculati Glass Stop Spacers for Windscreen Fixing – White and Black
Osculati glass stop spacers are designed for securing and positioning windscreens. They provide a spacing element at the fixing point and feature a compact cylindrical design with a flanged mounting base.
The spacer measures 10 mm in height and features a Ø7 mm central section. The mounting base has an outer diameter of 20 mm and a central hole measuring 4.4 mm in diameter.
The mounting component features an 8 mm projection and an overall height of 11.2 mm. The flange measures 3.3 mm in thickness.
These spacers are suitable for compatible windscreen mounting arrangements where a defined spacing distance and a circular mounting surface are required.
The range is available in White and Black. Both versions have identical dimensions and are supplied in boxes containing 100 pieces.
Technical Specifications
Brand Osculati Product Type Glass Stop Spacer Application Windscreen Fixing Available Colours White, Black Spacer Height 10 mm Central Section Diameter 7 mm Mounting Base Diameter 20 mm Mounting Hole Diameter 4.4 mm Projection Height 8 mm Overall Mounting Component Height 11.2 mm Flange Thickness 3.3 mm Packaging 100 pcs per box
Features and Applications
- Designed for windscreen fixing and positioning.
- Compact cylindrical spacer with a flanged mounting component.
- 10 mm spacer height.
- 20 mm diameter mounting base with a 4.4 mm central hole.
- Suitable for compatible marine windscreen installations.
- Available in White and Black.
- Supplied in boxes containing 100 pieces.
Available Variants
Osculati Part No. Colour Quantity 37.350.01 White 100 pcs 37.350.02 Black 100 pcs
Select the required colour to match the windscreen installation. Both versions have the same mounting dimensions.
-
