Hollex Stainless Steel 316 Fastpins with Pull Ring, Ø5–8 mm, 25 mm Length

ID 1404203

$ 2.38

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Hollex Fastpins with Pull Ring are made from AISI 316 stainless steel and designed for quick fastening and removal of compatible marine fittings and equipment. Each pin features a cylindrical shaft, a pull ring for convenient handling and a retaining ball near the tip. All versions measure 25 mm in length with an L1 dimension of 17 mm. Available in three shaft diameters — 5, 6 and 8 mm — these pins provide a practical fastening solution for suitable hatches, deck fittings and removable components on board.

Description
Ask a Question

Hollex Stainless Steel 316 Fastpins with Pull Ring

Hollex Fastpins with Pull Ring are quick-release fastening pins manufactured from AISI 316 stainless steel. They are designed for securing and removing compatible fittings and equipment without the need for a conventional threaded fastener.

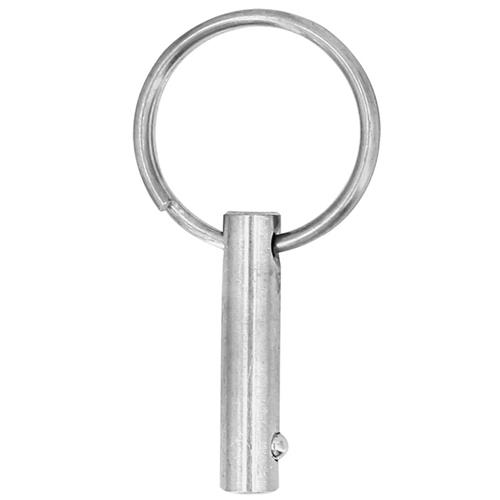

Each pin features a cylindrical shaft with a circular pull ring at one end and a retaining ball near the opposite end. The ring provides a convenient grip for inserting and removing the pin, while the retaining ball helps hold it in position.

The pins are made from corrosion-resistant AISI 316 stainless steel, making them suitable for marine and outdoor applications. They can be used with compatible deck fittings, hatches, removable components and other equipment requiring a quick-release fastening arrangement.

All three versions measure 25 mm in overall shaft length (L) and feature an L1 dimension of 17 mm. The shaft diameter (D) is available in 5, 6 or 8 mm.

Technical Specifications

Brand	Hollex
Product Type	Fastpin with Pull Ring
Material	AISI 316 Stainless Steel
Design	Cylindrical Pin with Pull Ring and Retaining Ball
Shaft Diameter (D)	5, 6, 8 mm
Length (L)	25 mm
Dimension (L1)	17 mm
Number of Variants	3

Features and Applications

Manufactured from corrosion-resistant AISI 316 stainless steel.
Quick-release fastening pin with a circular pull ring.
Retaining ball near the end of the shaft.
Convenient insertion and removal without conventional screw fastening.
Suitable for compatible marine fittings, hatches and removable equipment.
Available in three shaft diameters: 5, 6 and 8 mm.
Fixed shaft length of 25 mm and L1 dimension of 17 mm.

Available Sizes and Part Numbers

Hollex Part No.	Diameter (D)	Length (L)	L1
115102691	5 mm	25 mm	17 mm
115102692	6 mm	25 mm	17 mm
115102693	8 mm	25 mm	17 mm

Size Selection

Select the shaft diameter according to the mounting hole and the dimensions of the components being secured. All versions have the same 25 mm length and 17 mm L1 dimension.

Check the dimensions of the mating fittings before installation. The load rating and dimensional tolerances are not specified in the supplied product information.
