ID
1401887
$ 34.43
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
Length, mm:
- 16
- 40
- 60
- 70
- 80
- 100

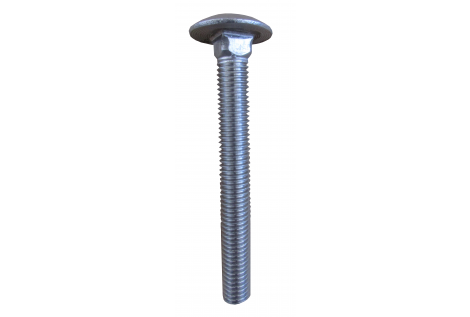

DIN 603 carriage bolts (TTQST 603) are manufactured from A2 stainless steel and feature a rounded head with a square neck for fastening applications. The square neck is designed to resist rotation when seated in a suitable mounting hole, while the smooth rounded head provides a neat external finish. Six dimensional configurations are available: M5×16 mm, M6×40 mm, M6×70 mm, M8×60 mm, M8×80 mm and M8×100 mm. The A2 stainless steel construction provides corrosion resistance for general indoor and outdoor fastening applications.
- Description
- Ask a Question
-
DIN 603 A2 Stainless Steel Carriage Bolts with Square Neck M5–M8, 16–100 mm
DIN 603 carriage bolts, also referred to as TTQST 603 bolts, are manufactured from A2 stainless steel and designed for various mechanical and structural fastening applications. Their rounded head provides a smooth external surface, while the square neck beneath the head helps prevent bolt rotation when properly seated in the mounting material.
The A2 stainless steel construction provides corrosion resistance for indoor, outdoor and moisture-exposed applications. These bolts are suitable for general fastening and assembly work where a rounded head and square-neck bolt design are required.
The range includes six dimensional configurations with nominal diameters of 5, 6 and 8 mm and lengths from 16 to 100 mm. Each version is identified by its individual FNI product number.
Technical Specifications
Product Type Carriage Bolt Standard DIN 603 Catalogue Designation TTQST 603 Material A2 Stainless Steel Head Type Rounded Head Neck Type Square Neck Available Diameters 5, 6, 8 mm Length Range 16–100 mm Number of Variants 6 Applications General mechanical and structural fastening
Features and Applications
- Manufactured from corrosion-resistant A2 stainless steel.
- DIN 603 carriage bolt design.
- Rounded head provides a smooth external fastening surface.
- Square neck helps prevent rotation when correctly seated.
- Suitable for general assembly and structural connections.
- Available in nominal diameters of 5, 6 and 8 mm.
- Six dimensional configurations with lengths from 16 to 100 mm.
Available Sizes and Part Numbers
Diameter Length FNI Part No. 5 mm 16 mm Y603516 6 mm 40 mm Y603640 6 mm 70 mm Y603670 8 mm 100 mm Y6038100 8 mm 60 mm Y603860 8 mm 80 mm Y603880
Size Selection
Select the carriage bolt according to the required nominal diameter and length. Available length options vary by diameter, so choose the dimensional combination appropriate for the intended assembly.
-
