ID
1397095
$ 129.36
1-2 weeks delivery time
-
+
The Plastimo 35729 Gate-Type Stanchion is manufactured from polished Ø25 mm 316 stainless steel tube and features two lifeline passages. It has an overall height of 630 mm, a fixing centre spacing of 280 mm and a drilling positioned 35 mm above the base. The stanchion is ISO 15085 compliant and is designed as a gate / access stanchion for the boat’s lifeline system.
- Description
- Ask a Question
-

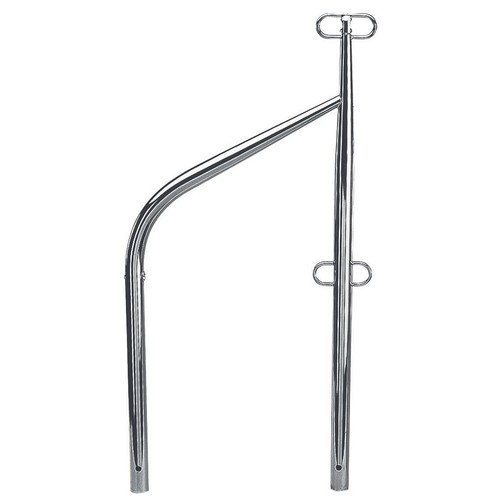

Plastimo 35729 Gate-Type Stanchion Ø25 mm, 316 Stainless Steel
The Plastimo 35729 is a gate-type stanchion manufactured from polished 316 stainless steel tube with a diameter of 25 mm. Its formed profile is designed for use as an access section within a lifeline installation and incorporates two lifeline passages.
The stanchion has an overall height of 630 mm and a fixing centre spacing of 280 mm. The catalogue drawing also shows a 330 mm upper vertical section. A drilling is positioned 35 mm above the base.
- Brand: Plastimo
- Reference: 35729
- Type: Gate-type stanchion
- Material: 316 stainless steel
- Finish: Polished
- Tube Diameter: Ø25 mm
- Lifeline Passages: 2
- Overall Height: 630 mm
- Upper Vertical Section: 330 mm
- Fixing Centre Spacing: 280 mm
- Drilling Position: 35 mm above the base
- Standard: ISO 15085 compliant
Plastimo Ref. 35729 Tube Diameter Ø25 mm Overall Height 630 mm Upper Vertical Section 330 mm Fixing Centre Spacing 280 mm Weight 1.22 kg Barcode 03162420357298 -
