Hoenderop fixed aluminium stanchion for inland vessel guard rail systems, supplied with a welding pin and finished in matt aluminium. The stanchion size is 30.0 × 5 mm and it has two Ø12 mm feed-through holes for guard rail wires positioned at 900 and 450 mm heights. The specified wire is 6 mm 6×19 galvanised steel with a 1 mm transparent PVC coating, giving an overall diameter of 8 mm.
- Description
- Ask a Question
-

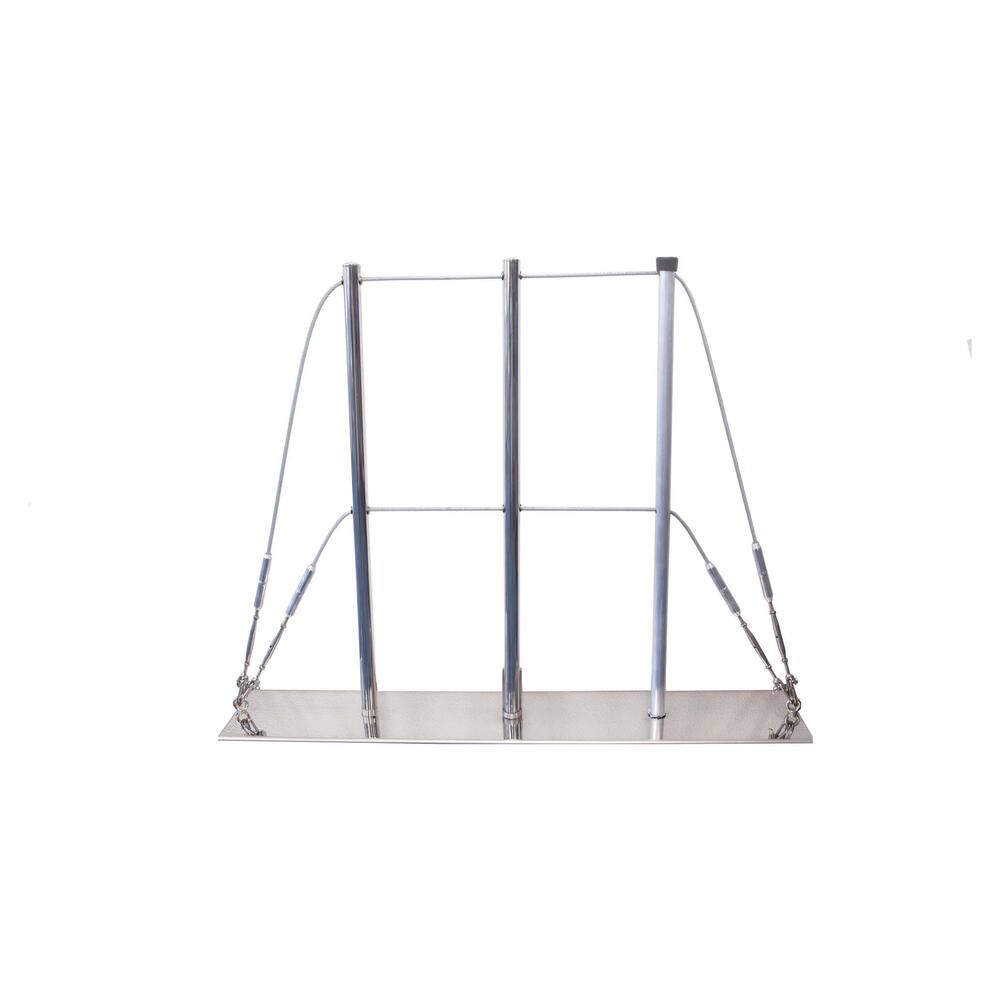

Hoenderop Aluminium Guard Rail Stanchion, Fixed – Matt Finish, Welding Pin Included
The Hoenderop fixed guard rail stanchion is made from aluminium and designed for inland vessel guard rail systems. It has a matt finish and is supplied with a welding pin for fixed mounting.
The guard rail system uses two wires positioned at heights of 900 mm and 450 mm. The stanchion has two Ø12 mm feed-through holes, allowing the wire ends to be passed through the stanchion.
Technical Specifications
- Brand: Hoenderop
- Product type: Guard rail stanchion
- Application: Guard rail for inland vessels
- Material: Aluminium
- Finish: Matt
- Mounting: Fixed
- Welding pin: Included
- Stanchion size: 30.0 × 5 mm
- Number of wire feed-through holes: 2
- Feed-through hole diameter: Ø12 mm
- Wire heights: 900 mm and 450 mm
- Product code: 59.01.111
Guard Rail Wire Specification
Steel wire diameter 6 mm Wire construction 6×19 galvanised steel PVC coating 1 mm transparent PVC Overall coated diameter 8 mm -
