ID
1396202
$ 44.44
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
- 30
Item:
- 60°
- 90°

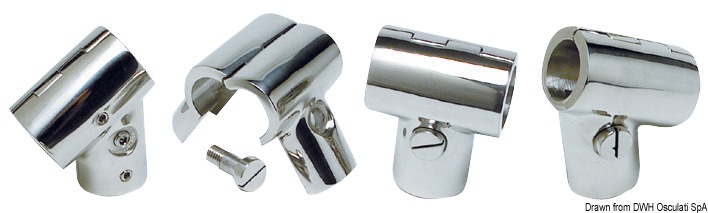

The Osculati hinged T-joint is made from precision-cast AISI 316 stainless steel and is designed for easy mounting in pulpit and railing assemblies. Six versions are available for Ø22 mm, Ø25 mm and Ø30 mm tubing, with either a 60° or 90° slope. Articles 41.116.01, 41.116.02 and 41.116.05 are 60° versions, while 41.116.03, 41.116.04 and 41.116.06 provide a 90° configuration.
- Description
- Ask a Question
-
Osculati AISI 316 Hinged T-Joint for Pulpits – Ø22/25/30 mm, 60°/90°
The Osculati hinged T-joint is designed for pulpit and railing tube connections where an opening joint simplifies installation. The fitting is manufactured from precision-cast AISI 316 stainless steel and is designed for easy mounting.
The range includes versions for Ø22 mm, Ø25 mm and Ø30 mm pipes, with either a 60° or 90° slope. This provides six combinations of pipe diameter and joint angle.
Key Features
- Made from precision-cast AISI 316 stainless steel
- Hinge-opening T-joint design
- Designed for easy mounting
- Available for Ø22 mm, Ø25 mm and Ø30 mm pipe
- Available with 60° or 90° slope
- Six diameter and angle combinations available
Available Versions
Code Slope For Pipe Ø 41.116.01 60° Ø22 mm 41.116.02 60° Ø25 mm 41.116.03 90° Ø22 mm 41.116.04 90° Ø25 mm 41.116.05 60° Ø30 mm 41.116.06 90° Ø30 mm
Technical Specifications
Material AISI 316 stainless steel Construction Precision-cast Joint Type Hinge-opening T-joint Pipe Diameter Options Ø22 mm / Ø25 mm / Ø30 mm Available Slopes 60° / 90° -
