The Osculati pulpit opening hinge is made from mirror-polished AISI 316 stainless steel and provides a 180° opening for hinged pulpit and railing sections. Three versions are available according to tube size and wall thickness: article 41.320.30 for 30×1.5 mm tube, 41.320.31 for 30×2 mm tube and 41.320.35 for 35×2 mm tube.
- Description
- Ask a Question
-
Osculati AISI 316 Pulpit Opening Hinge – 30×1.5 / 30×2 / 35×2 mm, 180°

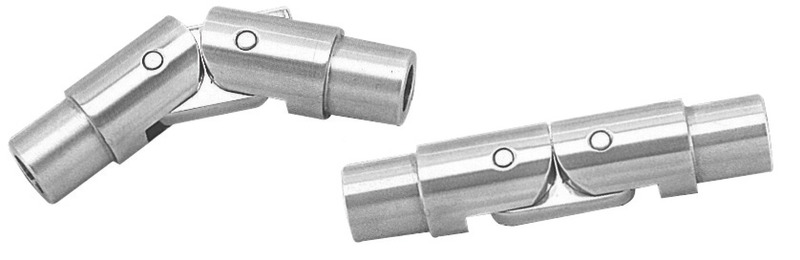

The Osculati pulpit opening hinge is designed for creating opening sections in pulpit and railing systems. It is manufactured from mirror-polished AISI 316 stainless steel and allows the connected section to open through 180°.
Three versions are available for different tube diameters and wall thicknesses: 30×1.5 mm, 30×2 mm and 35×2 mm.
Key Features
- Made from AISI 316 stainless steel
- Mirror-polished finish
- Opening hinge for pulpit and railing systems
- Opening angle: 180°
- Available for 30×1.5 mm, 30×2 mm and 35×2 mm tubes
Available Versions
Code Version Opening For Pipe 41.320.30 Opening Hinge 180° 30×1.5 mm 41.320.31 Opening Hinge 180° 30×2 mm 41.320.35 Opening Hinge 180° 35×2 mm
Technical Specifications
Material AISI 316 stainless steel Finish Mirror-polished Type Pulpit opening hinge Opening Angle 180° Tube Options 30×1.5 mm / 30×2 mm / 35×2 mm -
