The Scanstrut SPH-3I-W HelmPod holds three instruments on pedestal rails of 25mm to 33.7mm, with a watertight saddle system, no-drill u-bolt installation, quick servicing via ABS inserts, and durable silicone protection, supplied uncut.
- Description
- Ask a Question
-

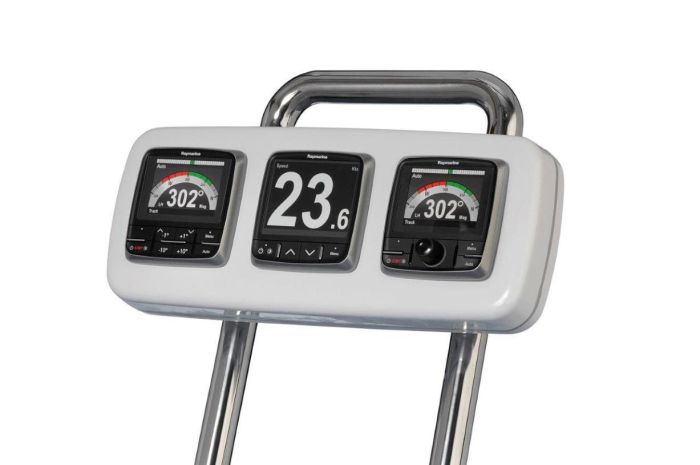

Scanstrut SPH-3I-W - HelmPod for 3 Instruments Bracket Mount White

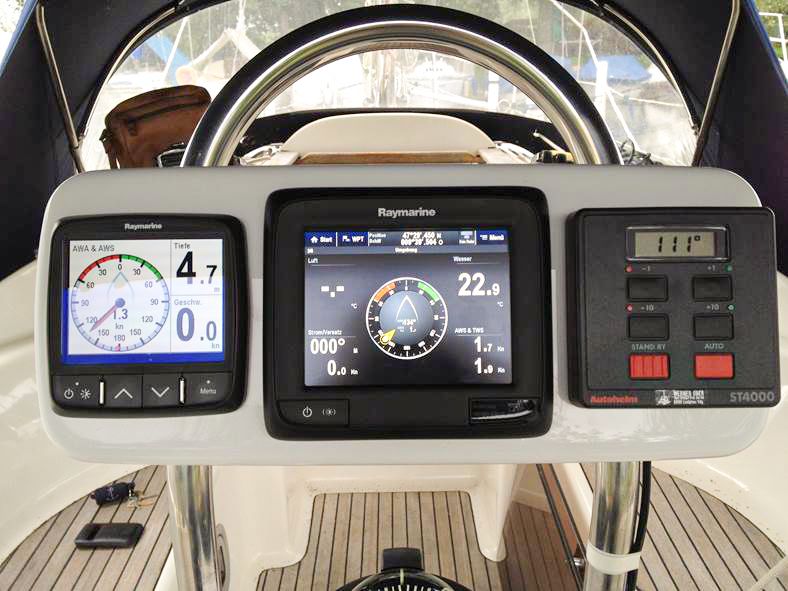

This helmpod is designed to securely hold three instruments, offering a universal fit and reliable protection for marine electronics.
- Universal helm fixing: Compatible with pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Secure & watertight install: The saddle system supports stainless tubing, ensuring a rigid fit and watertight seal at the cable entry.
- No drill fixing kit: Custom u-bolts wrap around the rail and pass through the saddles into the pod back, avoiding the need to drill the stainless rail.
- Hassle-free install & service: Fixings thread into injection moulded ABS inserts from back to front, allowing quick installation and easy servicing.
- Increased protection: Pod seal made from high tear strength silicone, highly resistant to heat and UV, preventing deterioration over time.
- Supplied uncut: Delivered uncut, with optional factory cutting service available for a small charge.
- Technical Specification:
- Material: Acrylic Capped ABS
- Colour: White
- Supplied uncut: Yes
- Size Guide:
- Fits pedestal rails: 25mm to 33.7mm (0.98″ – 1.33″) diameter
- Width: 432mm (17")
- Height: 181mm (7.1")
- Depth: 102mm (4.0")
- Min Rail Centres: 177.8mm (7")
- Max Rail Centres: 317mm (12.5")
- Item number: SCSPH-3I-W
-
