The Scanstrut SPH-SYSTEM-W SystemPod accommodates displays up to 12 inches, offering sturdy mounting on pedestal rails with watertight cable entry, no-drill U-bolts, easy servicing fixings, and high-strength silicone seals, delivered uncut with optional factory cutting.
- Description
- Ask a Question
-

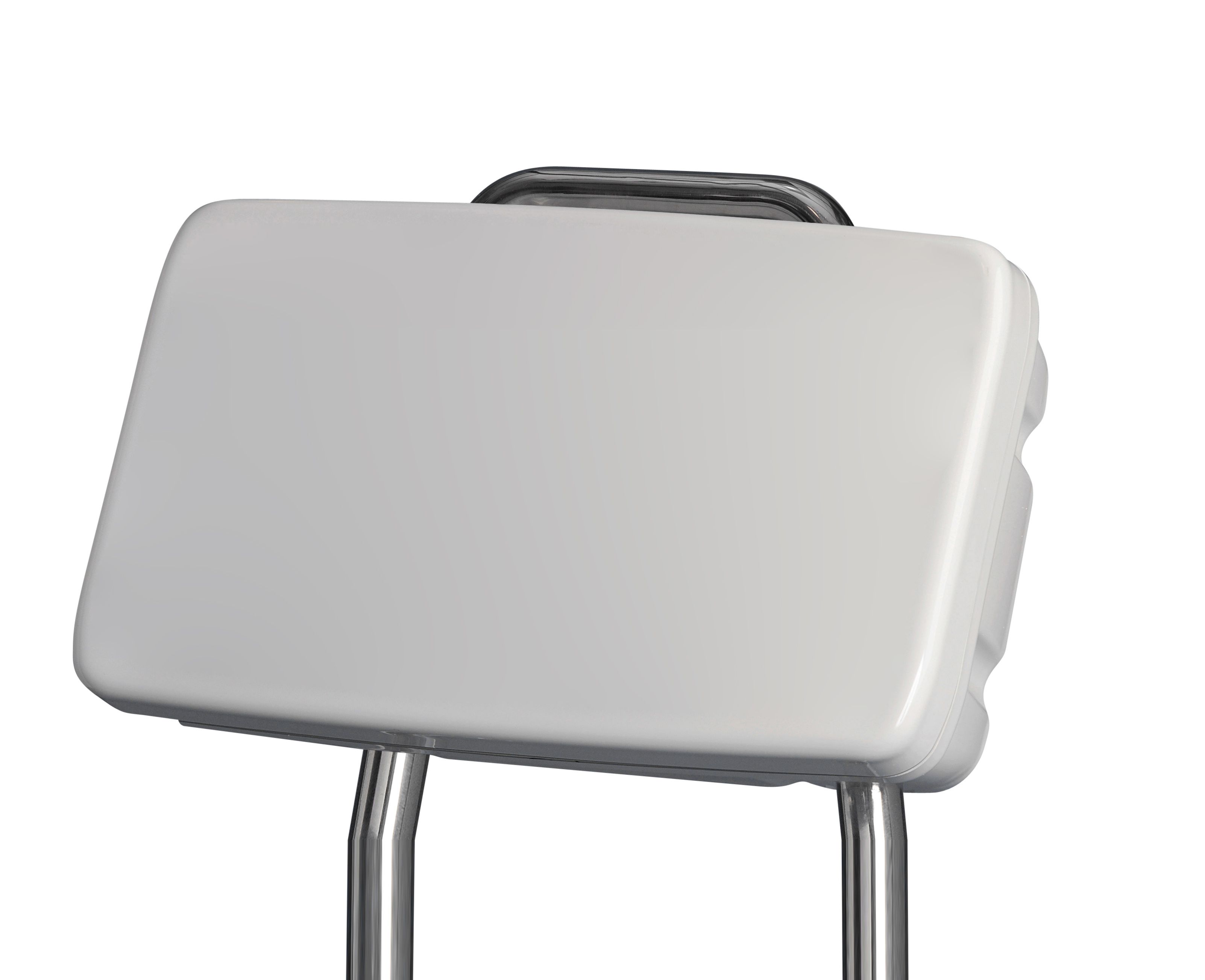

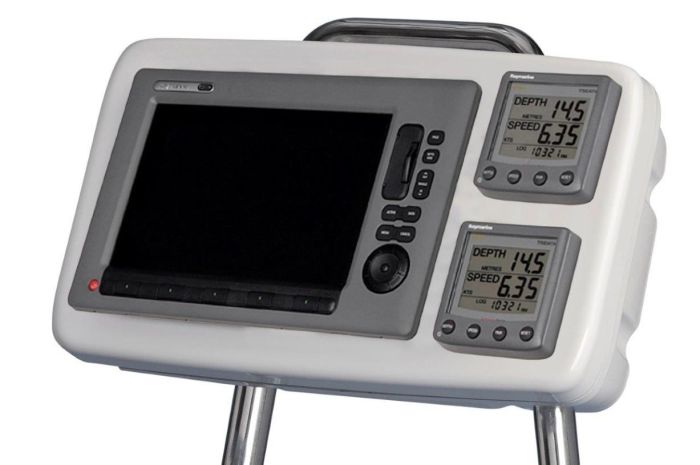

Scanstrut SPH-SYSTEM-W - SystemPod for Displays Up to 12 Inch Bracket Mount White
The SPH-SYSTEM-W SystemPod is designed to hold larger displays up to 12 inches, offering a sturdy and watertight mounting solution. Installation is straightforward, and the unit ensures long-lasting protection against environmental factors.
- Universal helm fixing: Suitable for pedestal rails from 25mm to 33.7mm (0.98″ – 1.33″) diameter.
- Secure & watertight install: Saddle system supports stainless tubing for a rigid fit and watertight cable entry seal.
- No drill fixing kit: Custom U-bolts secure around the rail and through the saddles, eliminating the need to drill stainless rails.
- Hassle-free install & service: Fixings cut threads into ABS inserts from back to front, enabling quick, safe installation and easy servicing.
- Increased protection: Silicone pod seal with high tear strength, heat and UV resistance ensures long-term durability.
- Supplied uncut: Delivered uncut as standard, with optional factory cutting service available for a small fee.
- Size Guide:
- Fits pedestal rails: 25mm to 33.7mm (0.98″ – 1.33″) diameter
- Width: 587mm (23.1")
- Height: 327mm (12.9")
- Depth: 175mm (6.9")
- Min Rail Centres: 177.8mm (7")
- Max Rail Centres: 381mm (15")
- Technical Specification:
- Material: Acrylic Capped ABS
- Colour: White
- Supplied uncut: Yes
- Item number: SCSPH-SYSTEM-W
-
