ID
1301691
$ 2,294.72
1-2 weeks delivery time
-
+
The SC102 mast extends the SC101 design to 2.5m, offering extra height for radar installations while maintaining stability, easy removal, and cable management through dual channels. Constructed from marine-grade 6082 aluminium with a durable powder coat finish, it includes support modules, a 360° adjustable base, and all mounting hardware, with item number SCSC102.
- Description
- Ask a Question
-

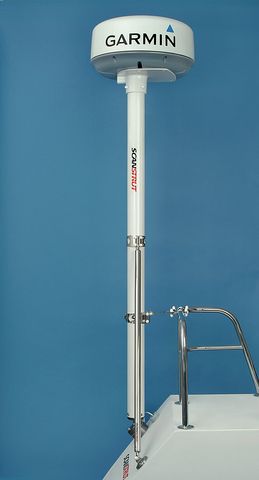

Scanstrut SC102 - Mast for Raymarine or Garmin Radar 2.5 m
The SC102 mast extends the same trusted design as the SC101 but offers a taller profile for installations where extra height is beneficial. It combines stability, easy removal, and cable management in a marine-grade aluminium structure.

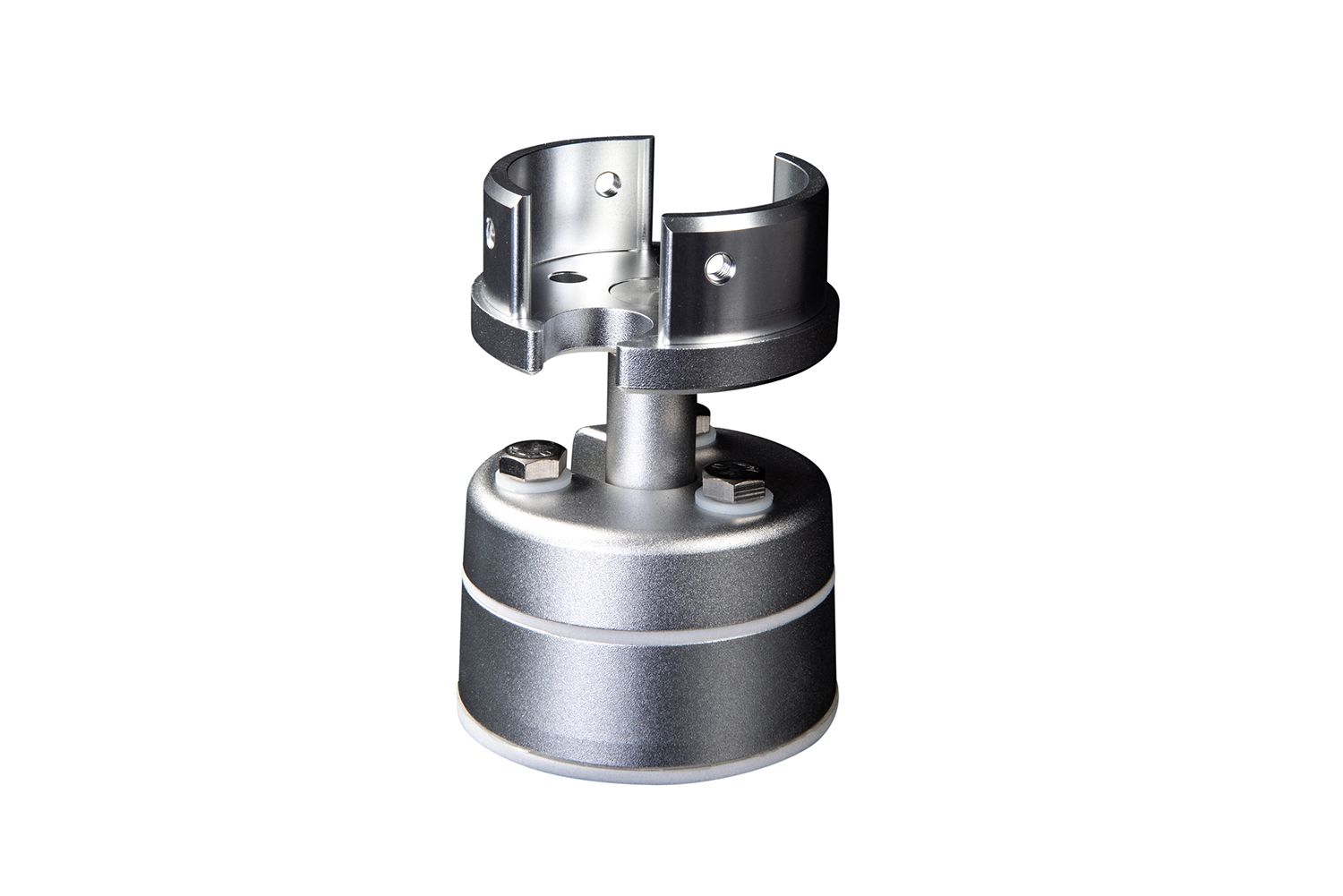

- 360° Adjustable Base: Anodised aluminium base provides flexible installation choices on sloping transoms or level decks.
- Unique Pole Extrusion: Two cable channels with a cover strip keep wiring organized and concealed.

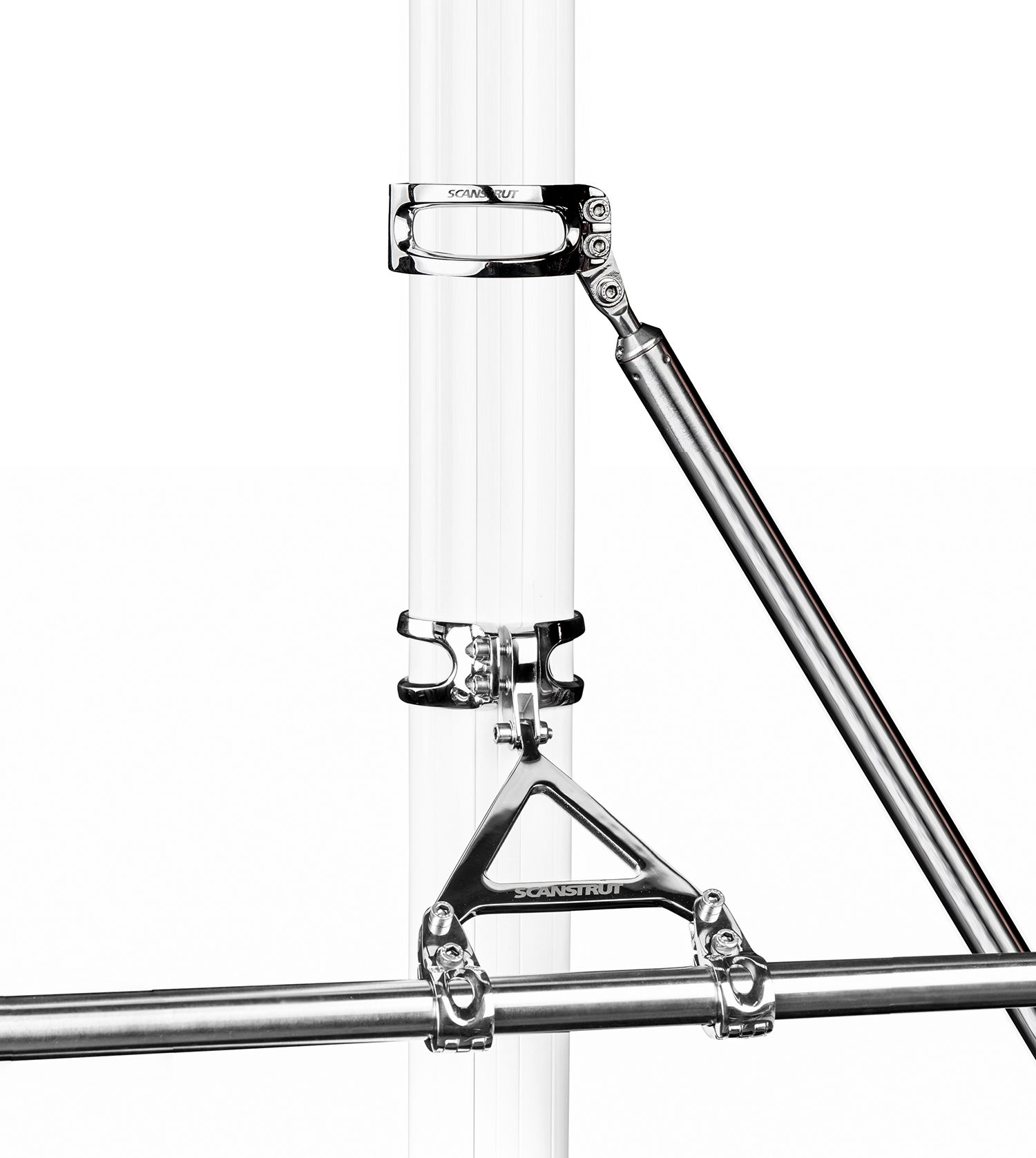

- Stable Installation: Two included support modules ensure maximum fore/aft and sideways stability for secure mounting.
- Easily Removed: Unscrew the base to remove the mast for racing or winter storage while leaving the low-profile base behind.
- Choice of Height: 1.9m (6.4’) for deck mounting and 2.5m (8.3’) for transom mounting.
- Marine Grade Materials: Made from 6082 aluminium with a polyester powder coat for a durable gloss white finish.
- Size Guide: Pole Height: 2.5m (8.3'), Pole Diameter: 83mm (3.27”), Deck Strut Length: 1200mm (47.2"), Rail Standoff Diameter: 25mm rail (0.98").
- Technical Specification: Pole Material: 6082 Aluminum, Hardware Material: Anodised Aluminium / 316 Stainless Steel, Colour: White, Mounting Hardware: Included.
- Item Number: SCSC102
-
