The SC105 mast is a 1.9m solution for mounting Satcom or TV antennas, featuring a 360° adjustable anodised aluminium base, dual cable channels with covers, and two support modules for fore/aft and sideways stability. Easily removable, made from 6082 aluminium with a glossy powder coat, it includes all necessary hardware, item number SCSC105.
- Description
- Ask a Question
-
Scanstrut SC105 - Mast for Satcom/TV Deck Mount 1.9 m

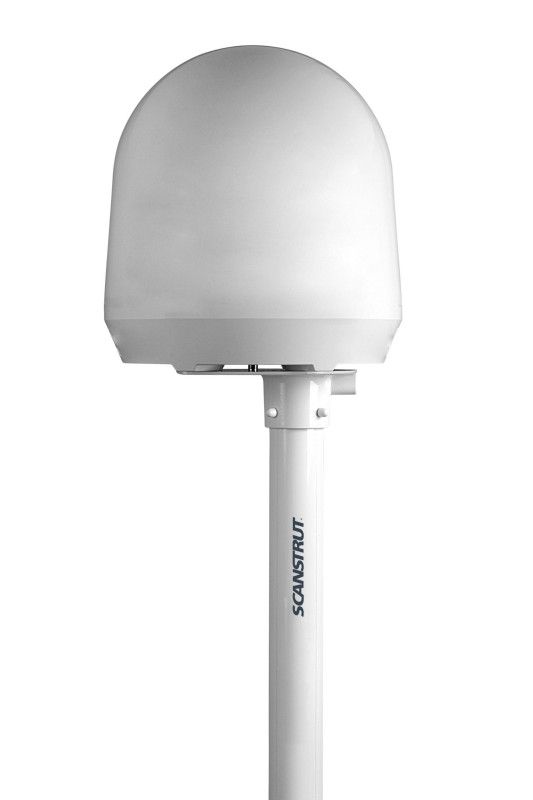

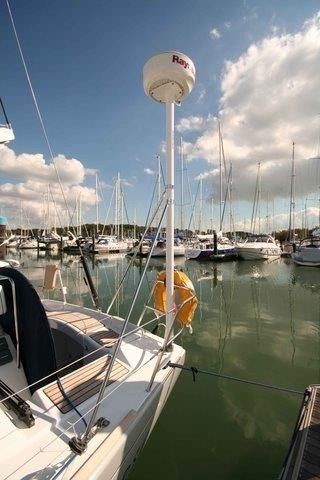

The Scanstrut SC105 mast offers a robust and flexible solution for mounting Satcom and TV antennas on your vessel. Designed for secure installation and convenient removal, it provides reliable support and a clean cable management system.

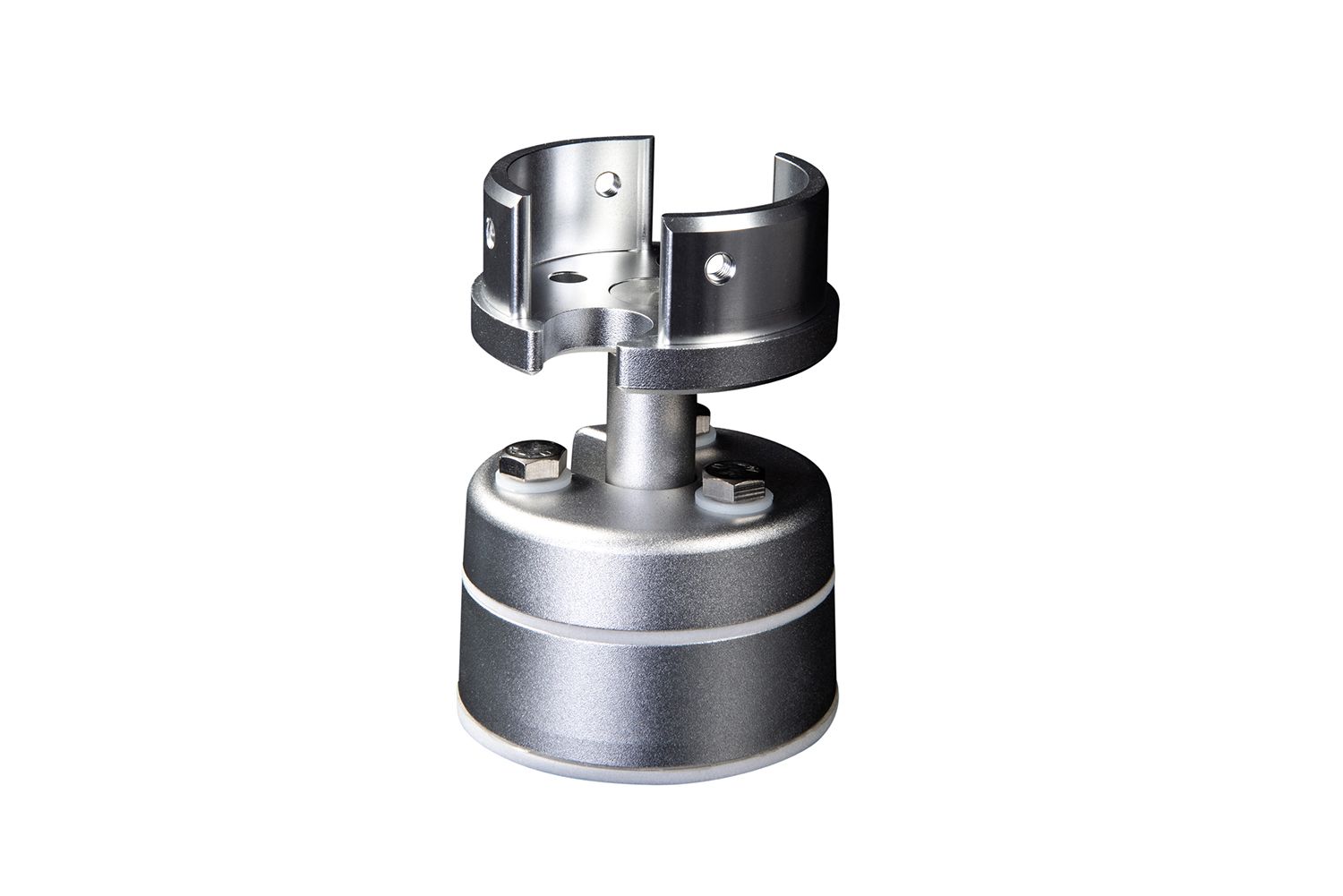

- 360° Adjustable Base: An anodised aluminium base allows flexible positioning on sloping transoms or level decks, giving you freedom to choose the ideal mounting location.
- Unique Pole Extrusion: Two integrated cable channels with cover strips keep cables neatly organized and hidden from view.

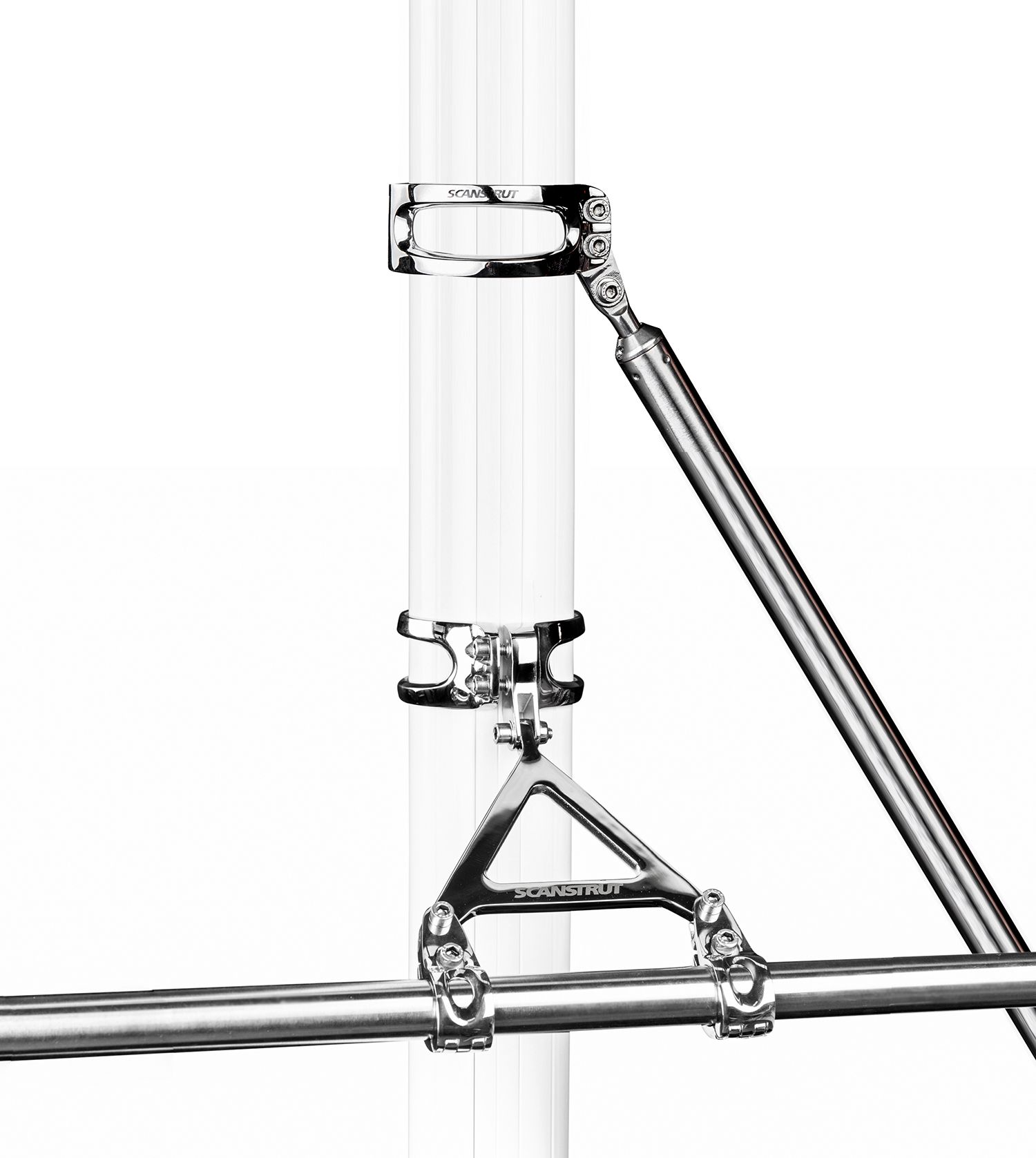

- Stable Installation: Includes two support modules that maximize fore/aft and sideways stability for complete confidence in your setup.
- Easily Removed: Unscrew the base to remove the mast for racing or winter storage, leaving only a low-profile base on the deck.
- Choice of Height: 1.9m (6.4’) is recommended for deck mounting, while 2.5m (8.3’) is ideal for transom mounting.
- Marine Grade Materials: Constructed from 6082 aluminium with a durable polyester powder coat and glossy white finish.
- Size Guide:
- Pole Height: 2.5m (8.3')
- Pole Diameter: 83mm (3.27")
- Deck Strut Length: 1200mm (47.2")
- Rail Standoff Diameter: 25mm (0.98")
- Technical Specification:
- Pole Material: 6082 Aluminium
- Hardware Material: Anodised Aluminium / 316 Stainless Steel
- Colour: White
- Mounting Hardware: Included
- Item number: SCSC105
-
