Plastimo trapezoidal zinc weld-on sacrificial anodes with integrated galvanised steel fixing straps, available in five versions from 0.3 to 2.5 kg. Plastimo 38220 has catalogue dimensions 150x110x35x15 mm with a 20x3 mm steel strap and an additional 185 mm catalogue dimension; 38221 is 170x120x45x21 mm with a 20x3 mm strap and 185 mm dimension; and 38222 is 210x160x90x30 mm with a 20x3 mm strap and 185 mm dimension. Plastimo 420913 measures 300x200x50x35 mm with a 25x4 mm strap, while 40237 measures 300x200x70x35 mm with a 25x4 mm strap.
- Description
- Ask a Question
-
Plastimo Trapezoidal Zinc Weld-On Anodes with Galvanised Steel Fixing Strap – 0.3–2.5 kg

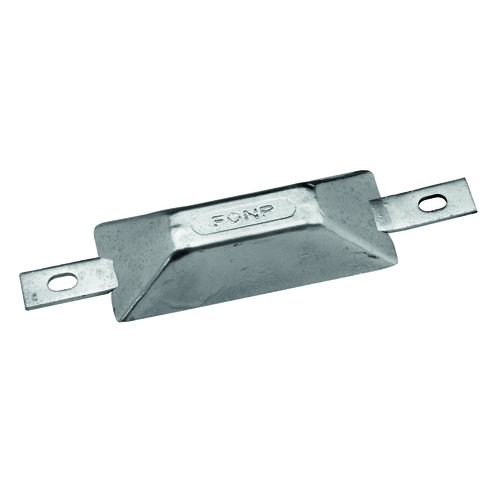

The Plastimo trapezoidal zinc weld-on anodes are sacrificial anodes fitted to integrated galvanised steel fixing straps. The zinc body has a tapered trapezoidal profile, while the steel strap extends from both ends for weld-on installation.
The range includes five zinc versions with weights from 0.3 to 2.5 kg. Variants differ in anode dimensions, fixing-strap section, weight and OEM reference.
Available Models
Plastimo Code OEM P/N Material Weight 38220 ZS035 SP Zinc 0.3 kg 38221 ZS036 SP Zinc 0.5 kg 38222 ZS039 VRAC Zinc 2.2 kg 420913 ZS024 Zinc 1.9 kg 40237 ZS025 Zinc 2.5 kg
Catalogue Dimensions
Plastimo Code Dimensions Steel Strap Additional Catalogue Dimension 38220 150x110x35x15 mm 20x3 mm 185 mm 38221 170x120x45x21 mm 20x3 mm 185 mm 38222 210x160x90x30 mm 20x3 mm 185 mm 420913 300x200x50x35 mm 25x4 mm - 40237 300x200x70x35 mm 25x4 mm -
Key Features
- Brand: Plastimo
- Material: Zinc
- Shape: Tapered trapezoidal block
- Type: Weld-on sacrificial anode
- Fixing: Galvanised steel strap
- Available Weights: 0.3, 0.5, 1.9, 2.2 and 2.5 kg
Select the appropriate version according to the required dimensions, anode weight and OEM reference.
-
