The Plastimo DC Anchor is a Lloyd's Register Marine certified plough-type anchor designed for exceptional holding power and rapid seabed penetration. Its wide base, weighted tip, and optimized shank geometry provide immediate setting thanks to a very low centre of gravity. Manufactured from high-quality hot-dip galvanised steel with a 420 MPa yield strength, the DC Anchor fits perfectly on a bow roller and is available in 4 kg to 63 kg versions for boats from 6 m to 30 m.
- Description
- Ask a Question
-

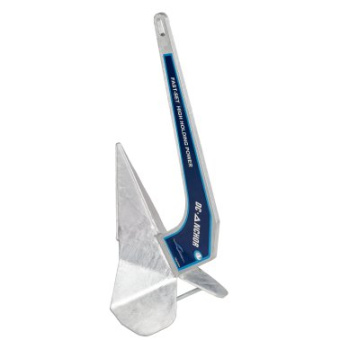

Plastimo DC Plough Anchor – Lloyd's Register Certified – Hot-Dip Galvanised Steel – 4 kg to 63 kg
The Plastimo DC Anchor is a premium plough-type anchor engineered to deliver exceptional holding power with rapid seabed penetration. Its wide flukes, weighted tip and optimized shank geometry create a very low centre of gravity, allowing immediate setting and dependable performance in demanding anchoring conditions.
Manufactured from high-quality hot-dip galvanised steel with a yield strength of 420 MPa, the DC Anchor offers excellent durability and corrosion resistance for long-term marine use. Its design naturally fits most bow rollers, making launching and recovery simple and efficient. The anchor is certified by Lloyd's Register Marine for dependable anchoring performance.
Features
- DC plough-type anchor
- Lloyd's Register Marine certified
- High holding power
- Wide flukes and weighted tip for rapid setting
- Very low centre of gravity for immediate burial
- Fits naturally on most bow rollers
- Manufactured from hot-dip galvanised steel
- Steel yield strength: 420 MPa
- Available in weights from 4 kg to 63 kg
Available Variants
Part Number Boat Length Weight A (mm) B (mm) C (mm) H (mm) D (mm) E (mm) F (mm) G (mm) 63714 6–9 m 4 kg 514 303 230 217 16 35 8 ± 0.35 32 63715 9–12 m 6 kg 593 350 265 254 16 35 10 ± 0.4 32 63716 12–15 m 10 kg 695 410 310 293 19 42 12.1–13.5 38 63717 15–18 m 16 kg 812 482 362 339 19 42 12.1–13.5 44 63718 18–20 m 20 kg 877 518 392 370 24 48 16 ± 0.4 48 63719 20–21 m 25 kg 945 558 415 397 24 48 16 ± 0.4 52 63720 21–23 m 32 kg 1023 603 445 425 26 62 18 ± 0.5 56 63721 23–24 m 40 kg 1099 665 489 461 24 48 20 ± 0.5 52 63722 24–27 m 50 kg 1175 695 523 486 24 48 20 ± 0.5 52 63723 27–30 m 63 kg 1270 760 567 537 28 56 22 ± 0.5 60
Technical Specifications
Product Type Plough Anchor Series DC Anchor Certification Lloyd's Register Marine Material Hot-Dip Galvanised Steel Steel Yield Strength 420 MPa Construction Wide Flukes with Weighted Tip Special Feature Very Low Centre of Gravity for Immediate Burial Bow Roller Compatibility Optimized to Fit Most Bow Rollers Available Weights 4 kg, 6 kg, 10 kg, 16 kg, 20 kg, 25 kg, 32 kg, 40 kg, 50 kg, 63 kg Recommended Boat Length 6 m to 30 m -
