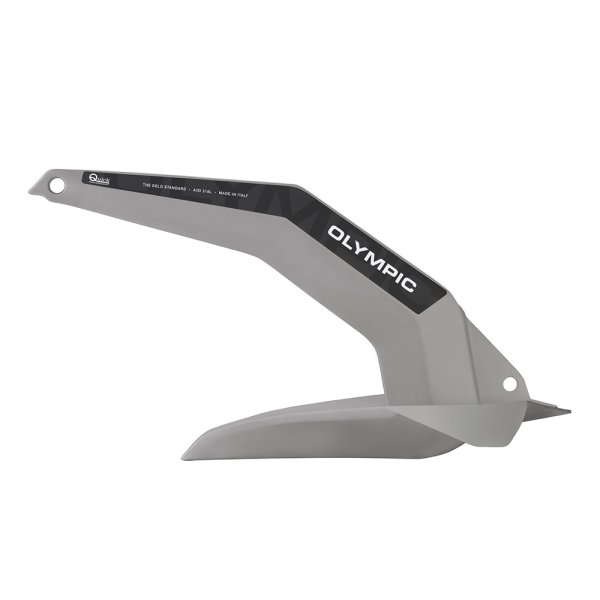

The Quick Olympic Anchor is a premium SHHP (Super High Holding Power) anchor manufactured in Italy from high-strength AISI 316 stainless steel. Certified by RINA, the Olympic anchor delivers more than twice the holding power of conventional HHP anchors while maintaining a compact, lightweight design. Available in Bright Polished or Satin finishes, the range includes anchor weights from 7 kg to 140 kg for vessels from approximately 6.5 to 34.5 metres, with compatibility for chain sizes from 6 mm to 18 mm.
- Description
- Ask a Question
-
Quick Olympic SHHP Stainless Steel Anchors – Bright Polished & Satin Finish
The Quick Olympic Anchor represents the latest generation of high-performance marine anchors. Designed and manufactured in Italy, it combines advanced engineering, premium AISI 316 stainless steel construction and certified SHHP (Super High Holding Power) performance to provide exceptional holding capability with reduced overall anchor weight.
Certified by RINA, the Olympic Anchor delivers more than twice the holding power of a conventional HHP anchor. Its optimized geometry, encapsulated lead ballast in the fluke tip and carefully engineered internal air cavities allow rapid penetration and excellent seabed positioning while reducing the load placed on the windlass, bow roller and anchor rode.
The compact shank profile has been designed for compatibility with most modern bow roller systems. The anchor is manufactured from precision-formed welded stainless steel and is available in either a Bright Polished or Satin finish. Matching Quick Anchor Connector Swivels are also available in both finishes.
Key Features
- Official SHHP (Super High Holding Power) certification by RINA;
- Holding power exceeding twice that of conventional HHP anchors;
- Manufactured from marine-grade AISI 316 stainless steel;
- Available in Bright Polished or Satin finish;
- High strength-to-weight ratio for reduced bow weight;
- Encapsulated lead ballast in the fluke tip for rapid penetration;
- Internal buoyancy chambers optimize seabed positioning;
- Compact shank compatible with most bow rollers;
- Reduces loads on the windlass, deck fittings and anchor rode;
- Manufactured in Italy using efficient and sustainable production methods.
Technical Specifications
Anchor Weight Recommended Chain Boat Length Boat Weight A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) 7 kg 6–8 mm 6.5–9.6 m 2 t 302 528 15 12 405 355 211 173 229 10 kg 6–8 mm 8.6–12.4 m 3.8 t 349 595 15 12 469 408 246 200 271 16 kg 8–10 mm 11.3–14.7 m 7 t 377 665 17 18.5 507 443 264 218 284 20 kg 8–10 mm 13.5–16.8 m 11 t 417 729 17 20 559 490 289.5 241 314 26 kg 10–13 mm 15.6–18.8 m 16 t 461 794 20 23 606 532 313 263 339 34 kg 10–13 mm 17.8–21 m 23.5 t 502 859 20 23 661 578 344 281 373 45 kg 12–14 mm 19.7–23 m 33 t 531 949 23 25 718 630 371 311 400 60 kg 12–14 mm 22.4–25.5 m 47 t 583 1034 23 25 785 688 411 342 442 80 kg 14–16 mm 24.5–27.5 m 69 t 637 1121 30 34 849 746 439 367 471 100 kg 14–16 mm 26.7–29.5 m 93 t 702 1231 30 34 936 822 485 408 520 120 kg 14–18 mm 29.2–32.3 m 132 t 764 1341 32 34 1019 894 529 444 567 140 kg 14–18 mm 31.5–34.5 m 171 t 763 1347 32 34 1022 898 530 446 568
Applications
- Sailing yachts;
- Motor yachts;
- Catamarans;
- Cruising vessels;
- Commercial vessels requiring SHHP-certified anchoring performance.
Available Variants
Anchor Weight Recommended Chain Recommended Boat Length 7 kg 6–8 mm 6.5–9.6 m 10 kg 6–8 mm 8.6–12.4 m 16 kg 8–10 mm 11.3–14.7 m 20 kg 8–10 mm 13.5–16.8 m 26 kg 10–13 mm 15.6–18.8 m 34 kg 10–13 mm 17.8–21 m 45 kg 12–14 mm 19.7–23 m 60 kg 12–14 mm 22.4–25.5 m 80 kg 14–16 mm 24.5–27.5 m 100 kg 14–16 mm 26.7–29.5 m 120 kg 14–18 mm 29.2–32.3 m 140 kg 14–18 mm 31.5–34.5 m -
