Maxwell Intermediate Rollers for TASMAN Drum Winches & Anchor Winch Systems

ID 1384574

$ 143.16

1-2 weeks delivery time

Size:

The Vetus Maxwell Intermediate Rollers are designed to guide anchor chain and rope between the bow and the winch, ensuring smooth operation in both conventional anchor winch and TASMAN drum winch installations. Manufactured from polished AISI 316 stainless steel, each roller features a low-friction sliding roller and an integrated guide hoop that prevents the rope from slipping off during operation. Available in 130 mm and 180 mm widths, the rollers are suitable for 6–8 mm chain and rope up to 10 mm.

Description
Ask a Question

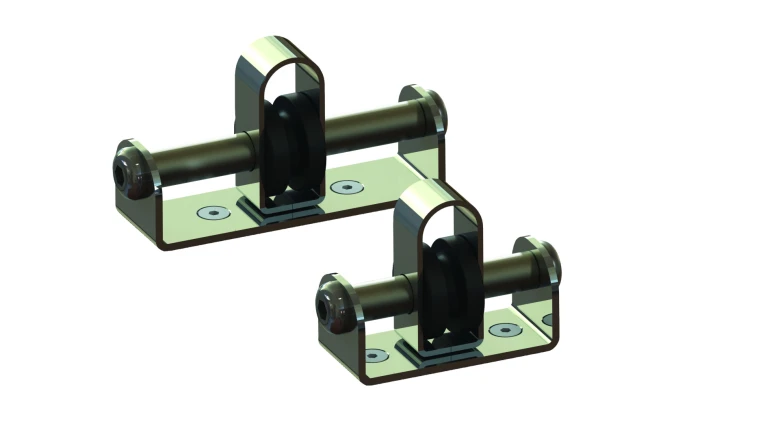

Vetus Maxwell Intermediate Rollers for TASMAN Drum Winches & Anchor Winch Systems

The Vetus Maxwell Intermediate Roller range is designed to provide smooth and controlled guidance of anchor chain and rope between the bow roller and the winch. These rollers are suitable for both conventional anchor winch installations and TASMAN drum winch systems, ensuring reliable chain deflection and controlled rope handling.

Manufactured from polished marine-grade AISI 316 stainless steel, each intermediate roller features a low-friction sliding roller that reduces resistance during operation. An integrated guide hoop prevents the rope from leaving the roller while allowing even spooling onto the drum winch.

Key Features

Designed for Maxwell TASMAN drum winch installations
Suitable for conventional anchor winch systems
Manufactured from polished AISI 316 stainless steel
Sliding roller design reduces friction during operation
Integrated guide hoop prevents rope from slipping off the roller
Ensures smooth chain and rope guidance between bow and winch
Supports even rope stowage on drum winches
Suitable for chain sizes from 6 mm (1/4") to 8 mm (5/16")
Suitable for rope up to 10 mm diameter

Available Versions

Article	Roller Width	Chain Compatibility	Line Compatibility	Material
P105093	130 mm	6–8 mm (1/4"–5/16")	Up to 10 mm	Polished AISI 316 stainless steel
P105094	180 mm	6–8 mm (1/4"–5/16")	Up to 10 mm	Polished AISI 316 stainless steel

Operating Principle

With a conventional anchor winch, the roller deflects the chain towards the chainwheel.
When installed with a TASMAN drum winch below deck, it guides the chain and rope downward into the drum.
The sliding roller minimizes resistance for smoother anchor handling.
The guide hoop keeps the rope securely aligned throughout operation.

Applications

Maxwell TASMAN drum winch installations
Anchor handling systems
Chain and rope guidance between bow and winch
Marine anchoring systems on sailing yachts and motorboats

Brand: Vetus
