Allpa Tilting Stainless Steel Anchor Bow Rollers for CQR, Delta & SOC Anchors

ID 1384611

$ 147.04

1-2 weeks delivery time

Weight, kg:

The Allpa Tilting Stainless Steel Anchor Bow Rollers are heavy-duty bow rollers manufactured from marine-grade AISI 316 stainless steel for reliable anchor handling. Specifically designed for CQR, Delta, and SOC anchors, the tilting mechanism ensures smooth launching, controlled retrieval, and secure stowage. Available in 300 mm, 400 mm, and 550 mm lengths, all models feature 80 mm internal width, 80 mm height, 3 mm stainless steel construction, and support anchors weighing up to 10 kg, 15 kg, or 20 kg.

Description
Ask a Question

Allpa Tilting Stainless Steel Anchor Bow Rollers for CQR, Delta & SOC Anchors

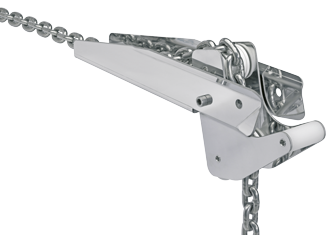

The Allpa Tilting Anchor Bow Rollers are designed to provide smooth, reliable anchor deployment and retrieval for CQR, Delta and SOC anchors. Manufactured from marine-grade AISI 316 stainless steel, these heavy-duty bow rollers feature a tilting mechanism that helps guide the anchor during launching and automatically aligns it when recovering.

The robust 3 mm stainless steel construction provides excellent corrosion resistance and long service life in demanding marine environments. Three sizes are available to accommodate different anchor weights while maintaining the same 80 mm internal width and 80 mm profile.

Key Features

Tilting bow roller for smooth anchor deployment and retrieval.
Designed for CQR, Delta and SOC anchors.
Manufactured from marine-grade AISI 316 stainless steel.
Heavy-duty 3 mm stainless steel construction.
Excellent corrosion resistance for marine environments.
Available in three sizes for anchors up to 20 kg.

Available Variations

Article	Length (A)	Width (B)	Height (C)	Thickness	Weight	Maximum Anchor Weight
489054	300 mm	80 mm	80 mm	3 mm	2.5 kg	10 kg
489055	400 mm	80 mm	80 mm	3 mm	2.8 kg	15 kg
489056	550 mm	80 mm	80 mm	3 mm	3.4 kg	20 kg

Technical Specifications

Parameter	Specification
Brand	Allpa
Product Type	Tilting Anchor Bow Roller
Material	AISI 316 Stainless Steel
Construction	Tilting
Compatible Anchor Types	CQR, Delta, SOC
Available Lengths	300 mm, 400 mm, 550 mm
Width (B)	80 mm
Height (C)	80 mm
Material Thickness	3 mm
Maximum Anchor Weight	10 kg, 15 kg or 20 kg (depending on model)
Application	Marine anchoring systems

Benefits

Optimized for CQR, Delta and SOC anchor designs.
Tilting action improves anchor alignment during recovery.
Heavy-duty AISI 316 stainless steel ensures long service life.
Excellent resistance to corrosion in saltwater environments.
Three sizes available to match different vessel and anchor requirements.
