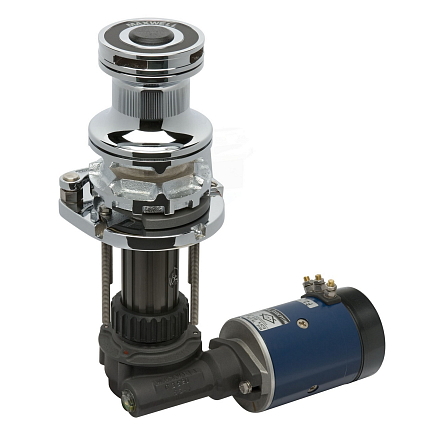

The Maxwell Windlass VWRC12-12, 24 V DC 1200 W Chainwheel Only 90 TDC CW (Vetus P106229) is a vertical electric anchor windlass chainwheel unit designed for marine applications with 12 mm chain and appropriate rope, featuring a 24 V DC 1200 W drive and clockwise (CW) 90 mm total deck clearance (TDC) for efficient anchor handling and reliable performance.
- Description
- Ask a Question
-
Maxwell Windlass VWRC12-12 24V DC 1200W Chainwheel Only 90TDC CW (Vetus P106229)
Specification Details Model VWRC12-12 Part Number Vetus P106229 Voltage 24 V DC Motor Power 1200 W Rotation CW (Clockwise) Total Deck Clearance 90 mm (TDC) Configuration Chainwheel Only Chain Compatibility 12 mm short link marine chain Rope Compatibility Typically ~20 mm nylon rope when used in combination Series Family Maxwell VWRC12 vertical windlass series
- Vertical electric anchor windlass component engineered for marine anchoring functions
- Powered by a 24 V DC, 1200 W motor delivering reliable drive performance in anchor retrieval and deployment
- CW (clockwise) rotation direction designed to match standard anchor handling setups
- 90 mm total deck clearance (TDC) suited for compact foredeck mounting
- Chainwheel only configuration — intended for installations without an integrated rope drum
- Compatible with 12 mm short link anchor chain and typical nylon rope combinations in RC12-12 class windlasses :contentReference[oaicite:1]{index=1}
- Part of the Maxwell RC12 series vertical windlasses renowned for strength, durability and marine reliability :contentReference[oaicite:2]{index=2}
- Suitable for yachts and vessels requiring robust electric anchor handling within the RC12 power range
-
