ID
1300680
$ 7,110.83
1-2 weeks delivery time
-
+

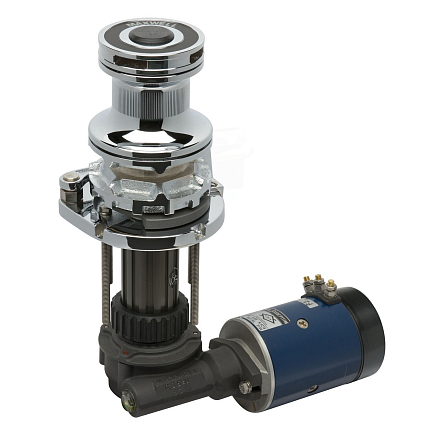

The Maxwell Windlass VWRC12-13, 12 V DC 1200 W Chainwheel Only 90 TDC CW (Vetus P106239) is a vertical electric anchor windlass unit engineered for marine anchoring with 12–13 mm short link chain and compatible nylon rope, featuring 12 V DC 1200 W power, clockwise (CW) rotation, and 90 mm total deck clearance (TDC) for reliable anchor retrieval and deployment.
- Description
- Ask a Question
-
Maxwell Windlass VWRC12-13 12V DC 1200W Chainwheel Only 90TDC CW (Vetus P106239)
Specification Details Model VWRC12-13 Part Number Vetus P106239 Voltage 12 V DC Motor Power 1200 W Rotation CW (Clockwise) Total Deck Clearance 90 mm (TDC) Configuration Chainwheel Only (no drum) Chain Compatibility 12–13 mm short link chain Rope Compatibility 20 mm nylon rope (typical) Series Family Maxwell RC12 vertical windlass series
- Vertical electric marine anchor windlass designed for reliable anchor handling operations
- Powered by a robust 12 V DC, 1200 W motor for efficient deployment and retrieval of anchor rode
- Clockwise (CW) rotation is standard for forward anchor operation on most vessels
- 90 mm total deck clearance (TDC) suited for compact foredeck installations
- Chainwheel only configuration, intended for applications without an integrated rope drum
- Engineered to accept 12 mm–13 mm short link chain and compatible 20 mm nylon rope for combined rode systems, typical of the RC12-13 class in RC12 series windlasses :contentReference[oaicite:1]{index=1}
- Part of the Maxwell RC12 family known for durable construction and dependable performance in marine environments
- Suitable for a range of recreational and light commercial vessels requiring robust vertical windlass solutions
-
