The Maxwell RC12-12 vertical automatic rope/chain windlass, article number Vetus P104939, is a stainless steel anchor winch powered by a 12 V DC, 1200 W motor and configured with a 190 TDC chainwheel featuring clockwise (CW) rotation. Designed for demanding anchoring applications, it is suitable for 12–13 mm chain and 20 mm nylon rope, delivering a maximum pull of 1590 kg. Supplied without drum, this model is intended for reliable anchoring performance on medium to large vessels.
- Description
- Ask a Question
-

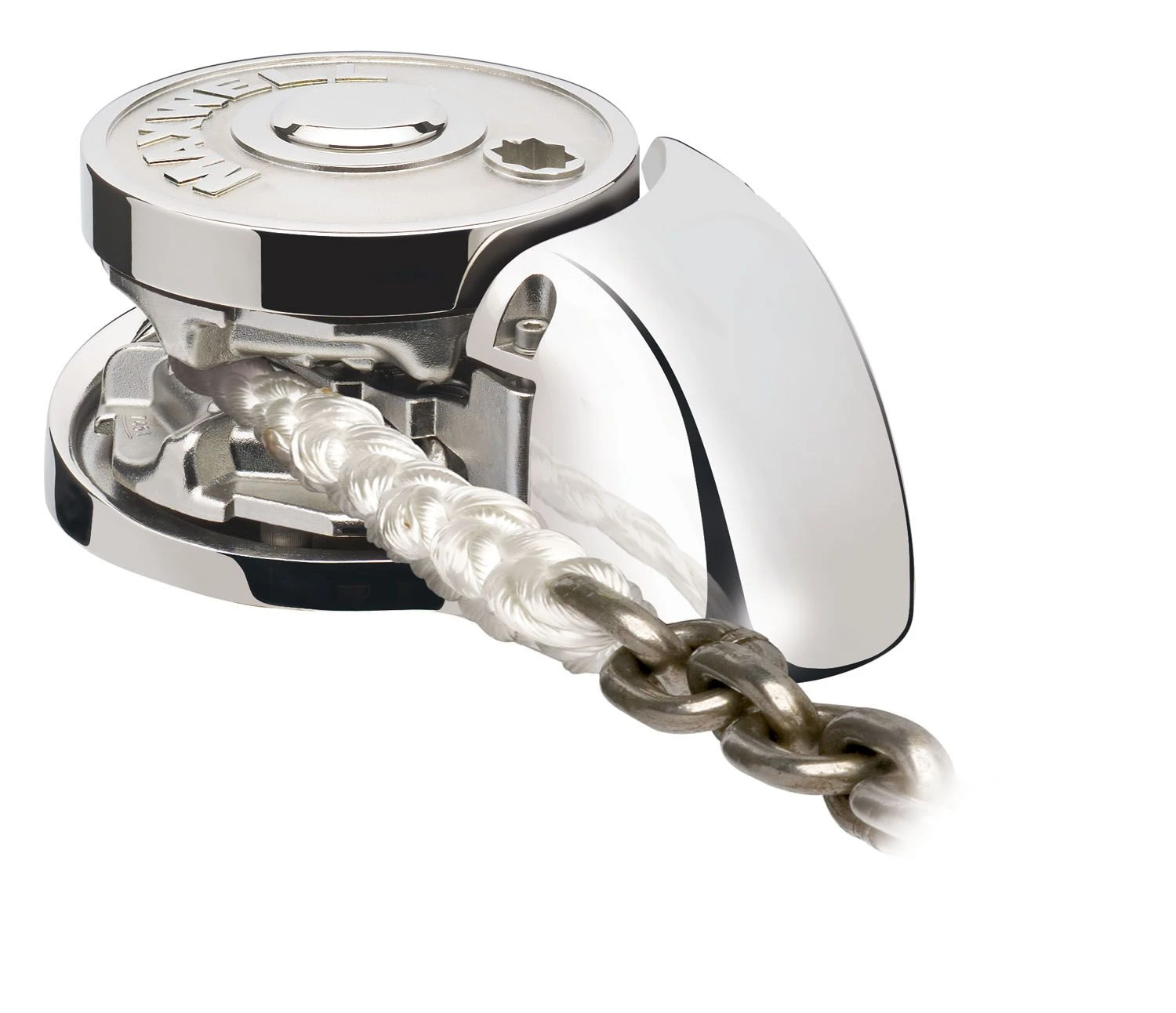

Maxwell RC12-12 Vertical Automatic Rope and Chain Windlass 12V 1200W 190TDC CW
The Maxwell RC12-12 is a stainless steel vertical automatic rope/chain windlass from Maxwell’s RC12 Series, supplied under article number Vetus P104939. This model is powered by a 12 V DC electric motor rated at 1200 W and features a 190 TDC chainwheel with clockwise (CW) rotation. It is engineered for high-load anchoring applications requiring dependable performance and durability.
Designed for use with 12–13 mm short link chain and 20 mm nylon rope, the RC12-12 delivers a maximum pull of 1590 kg. The automatic rope/chain handling system ensures smooth and controlled anchor deployment and retrieval under load.
The windlass incorporates a ratcheted mechanism lever that prevents backwinding during emergency manual recovery of the anchor rode. For safe and correct operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These securing systems must also be used to secure the anchor in the fully raised position when the vessel is underway.
Key Features
- Vertical automatic rope and chain windlass
- 12 V DC electric motor rated at 1200 W
- 190 TDC chainwheel with clockwise (CW) rotation
- Automatic rope and chain handling system
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Manufactured from stainless steel
- Supplied without drum
Technical Specifications
Parameter Specification Article Number Vetus P104939 Model Maxwell RC12-12 Motor Power 1200 W Voltage 12 V DC Configuration Vertical Rotation Clockwise (CW) Maximum Pull / Lift 1590 kg Chainwheel Rating 190 TDC Rope / Chain Type Automatic rope/chain Drum No Net Weight 23 kg
Rope and Chain Compatibility
Component Specification Chain Type Short link Chain Diameter 12–13 mm Rope Type Nylon Rope Diameter 20 mm -
