ID
1307475
$ 139.06
1-2 weeks delivery time
Type:
- 2/4 inp.
- 3 inp.
Voltage:
- 12V
- 24V
Power, W
- 500W
- 1000/1500W
- 1500/4000W
- 1500/3000W
- 3000/3500W
- 500/1400W
- 1700/2300W
- 1500/2300W
Item:
- T6415-12
- T6415-24
- T6315-12
- T6315-24
The QUICK Windlass Control Boxes by MZ Electronic are IP56-rated reversing contactor units designed for electric anchor windlasses with 3-pole, 4-pole, and permanent magnet motors. Available in multiple 12V and 24V configurations covering motors from 500W up to 4000W, they are compatible with foot switches, handheld controllers, panel controls, and portable remote controls. This product groups all QUICK-compatible control boxes available in the Osculati catalogue.
- Description
- Ask a Question
-

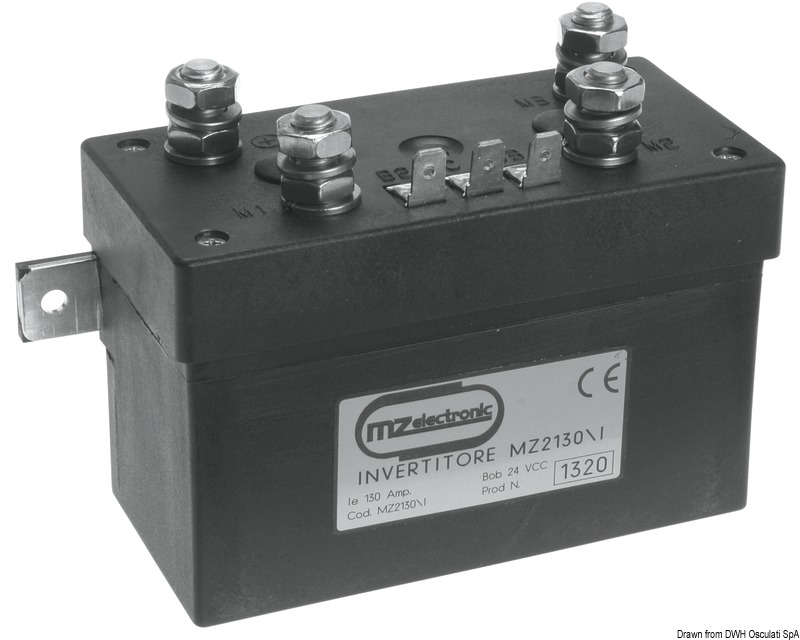

QUICK Windlass Control Boxes & Reversing Contactors by MZ Electronic
The QUICK Windlass Control Box range consists of reversing contactor units manufactured by MZ Electronic for electric anchor windlasses and capstans. Designed for 3-pole, 4-pole and permanent magnet motors, these control boxes provide reliable motor switching for a wide range of marine anchoring systems.
All models feature IP56 protection and are compatible with foot switches, handheld remote controls, fixed control panels and portable controllers. Multiple versions are available to match different motor voltages, power ratings and motor configurations.
This product groups all QUICK-compatible reversing contactors available through the Osculati catalogue.
Key Features
- Manufactured by MZ Electronic for QUICK windlass systems;
- Suitable for electric anchor windlasses and capstans;
- Compatible with 3-pole, 4-pole and permanent magnet motors;
- Available in 12V and 24V versions;
- IP56 protection rating;
- Compatible with foot switches, handheld remotes and control panels;
- Wide range of motor power capacities.
Available Versions
Osculati Code QUICK Model MZ Electronic Model Voltage Motor Power Motor Type Dimensions 02.316.01 68000320 MZ2090/L 12 V 700 W 2 / 4 Pole 114 × 52 × 88 mm 02.316.02 68000320 MZ2130/H 12 V 1000–1500 W 2 / 4 Pole 148 × 60 × 95 mm 02.316.03 68000321 MZ2130/I 24 V 500–1500 W 2 / 4 Pole 148 × 60 × 95 mm 02.316.06 — MZIC20133 12 V 1500–4000 W 2 / 4 Pole 148 × 70 × 120 mm 02.316.07 — MZIC20134 24 V 1500–3000 W 2 / 4 Pole 148 × 70 × 120 mm 02.316.05 68000321 MZIC20123 24 V 3000–3500 W 2 / 4 Pole 160 × 100 × 150 mm 02.317.01 68000937 MZ2100/M 12 V 500 W 3 Pole 114 × 52 × 88 mm 02.317.02 68000937 / 68000318 MZ2150/C 12 V 1000–1500 W 3 Pole 148 × 60 × 95 mm 02.317.03 68000938 / 68000319 MZ2150/D 24 V 500–1400 W 3 Pole 148 × 60 × 95 mm 02.317.04 68000318 MZ2150PA/C 12 V 1700–2300 W 3 Pole 130 × 70 × 120 mm 02.316.04 68000319 MZ2150PA/D 24 V 1500–2300 W 3 Pole 148 × 60 × 95 mm
Applications
- Electric anchor windlasses;
- Marine capstans;
- 3-pole and 4-pole windlass motors;
- Permanent magnet motors;
- Compatible with foot switches, handheld controllers and fixed control panels.
-
