ID
1380311
$ 120.79
1-2 weeks delivery time
Current (Amps):
- 100A
- 50A
The Osculati Windlass & Bow Thruster Control Panels combine an Airpax toggle switch with an integrated magneto-hydraulic circuit breaker to protect electric windlasses and bow thrusters from overload. Available in 50A and 100A versions, both panels feature an 80 × 60 mm mounting format, a 12V red status indicator, and overload protection capable of handling 200% load for up to 10 seconds before disconnecting the circuit.
- Description
- Ask a Question
-

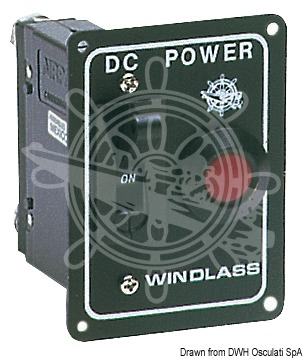

Osculati Windlass & Bow Thruster Control Panels with Magneto-Hydraulic Safety Switch
The Osculati Windlass & Bow Thruster Control Panel range is designed to provide reliable power isolation and overload protection for marine windlasses and bow thrusters. Each panel incorporates an Airpax toggle switch together with a magneto-hydraulic safety switch that automatically disconnects the electrical circuit in the event of an overload.
The protection system is designed to withstand loads of up to 200% of the rated current for 10 seconds before tripping, helping to protect both the motor and the onboard electrical installation. Every panel is supplied with a 12V red indicator light and features a compact 80 × 60 mm mounting format for easy installation.
Two versions are available to suit different windlass power requirements.
Key Features
- Control panel for windlasses or bow thrusters;
- Integrated Airpax toggle switch;
- Magneto-hydraulic overload protection;
- Automatically disconnects power during overload conditions;
- Supports 200% rated load for up to 10 seconds;
- Supplied with 12V red indicator light;
- Compact 80 × 60 mm panel;
- Suitable for 12V and 24V installations.
Available Versions
Osculati Code Current Rating Panel Size Recommended Windlass Power (12V) Recommended Windlass Power (24V) 02.340.00 100 A 80 × 60 mm 700–1200 W 1000–2000 W 02.340.01 50 A 80 × 60 mm 400–500 W 700–1000 W
Technical Specifications
- Switch type: Airpax toggle switch;
- Protection type: Magneto-hydraulic circuit breaker;
- Overload capacity: 200% rated load for 10 seconds;
- Indicator: 12V red warning light;
- Panel dimensions: 80 × 60 mm;
- Application: Windlass and bow thruster protection.
Applications
- Electric anchor windlasses;
- Bow thrusters;
- Marine electrical protection systems;
- Boat and yacht control panels.
-
