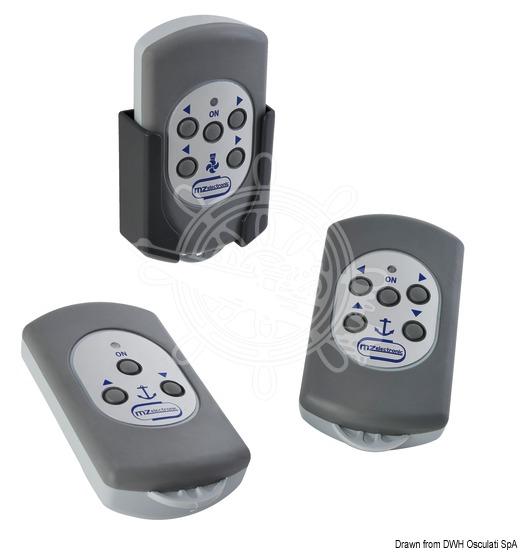

MZ ELECTRONIC Spare Wireless Remote Controller for Windlass & Bow Thruster Systems

ID 1380109

$ 199.53

1-2 weeks delivery time

Type:

3 buttons (Anchor)
5 buttons (Anchor + Thruster)

The MZ ELECTRONIC Spare Wireless Remote Controller is designed as a replacement or additional transmitter for compatible MZ ELECTRONIC wireless control systems. Compatible with systems supporting up to eight transmitters, it is available in 3-button and 5-button versions for anchor windlass or combined windlass and bow thruster control. The floating handheld transmitter is powered by two replaceable AAA batteries, offers an average operating range of 40 metres, and is waterproof to IP66 (1 metre depth), making it suitable for demanding marine environments.

Description
Ask a Question

MZ ELECTRONIC Spare Wireless Remote Controller for Windlass & Bow Thruster Systems – 3 or 5 Buttons

The MZ ELECTRONIC Spare Wireless Remote Controller is designed as an additional or replacement transmitter for compatible MZ ELECTRONIC wireless marine control systems. It provides convenient wireless operation of anchor windlasses and bow thrusters while maintaining full compatibility with existing control units.

The remote controller is available in two versions. The 3-button model is intended for anchor windlass control, while the 5-button version provides control of both anchor windlasses and bow thrusters. Both versions are compatible with MZ ELECTRONIC wireless systems supporting up to eight transmitters.

The floating handheld transmitter is powered by two replaceable AAA batteries and features IP66 protection, allowing temporary immersion to a depth of 1 metre. With an average wireless operating range of approximately 40 metres, it provides reliable onboard operation from multiple positions.

Key Features

Original MZ ELECTRONIC spare wireless remote controller;
Compatible with MZ ELECTRONIC wireless control systems;
Supports systems with up to 8 transmitters;
Available with 3 or 5 control buttons;
Floating handheld design;
IP66 waterproof protection (up to 1 m depth);
Average wireless operating range of approximately 40 m;
Powered by two replaceable AAA batteries;
Suitable as an additional or replacement transmitter.

Technical Specifications

Application	Replacement or additional wireless transmitter
Compatibility	MZ ELECTRONIC wireless control systems
Maximum Supported Transmitters	Up to 8
Protection Rating	IP66 (waterproof to 1 m depth)
Construction	Floating handheld transmitter
Operating Range	Approximately 40 m
Power Supply	2 × replaceable AAA batteries

Available Variants

Code	Buttons	Application
02.366.10	3	Anchor windlass control (Version A systems)
02.366.11	5	Anchor windlass and bow thruster control (Version B systems)

Compatible Systems

Remote Controller	Compatible Kit	System Version
02.366.10	02.366.00	Version A – Anchor Windlass Kit
02.366.11	02.366.01	Version B – Anchor Windlass & Bow Thruster Kit
