€ 1.853,72
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Type:
- TASMAN 8-8
- TASMAN 8-6
- TASMAN 6-6
- TASMAN 6-4
- TASMAN 8
Voltage:
- 12V
- 24V
Item:
- Incl.100m 8mm rope + 10m 8mm chain
- Incl.150m 6mm rope + 10m 6mm chain
- Incl.70m 6 mm ropea + 10m 6mm chain
- Incl.100m 4 mm rope + 10m 6 mm rope + 10m 6 mm chain
- Reel winch for metal rope

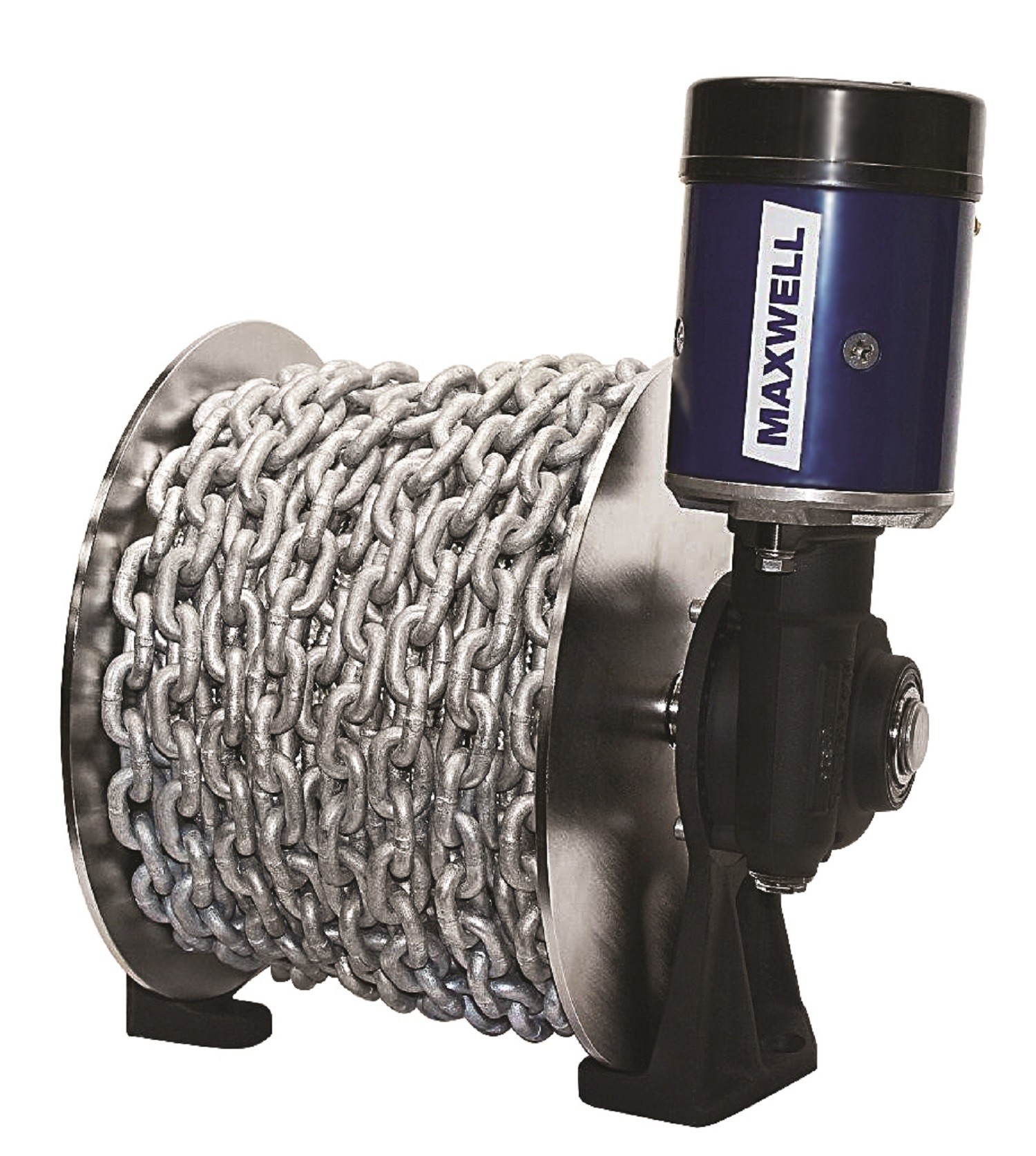

The Maxwell Tasman Heavy Duty Winch is a reliable and robust solution for your vessel's anchoring needs. These winches are designed to withstand the rigors of marine environments and are equipped with proven Maxwell motors and gearboxes made from durable stainless steel and marine anodized aluminum.
- Description
- Ask a Question
-
- Sturdy and Reliable: The Tasman winches are designed to be sturdy and dependable, ensuring reliable performance even in challenging conditions.
- Independent Leg Design: These winches feature independent legs, providing flexibility in motor positioning during installation.
- Manual Control Capability: With manual control capability, you have the option to operate the winch manually when needed.
- Integrated Gearbox: The gearbox is integrated with one of the legs, reducing the overall width of the winch for a more compact design.
- Motor Options: The TASMAN 8 series winches come with powerful 1000 W electric motors, while the TASMAN 6 series offers even more robust 6600 W motors.
- Durable Shaft: Featuring a strong 28.5 mm shipbuilding steel shaft made of 2205 DUPLEX stainless steel for enhanced durability.
- Model Variety: Choose from a selection of 10 different models to suit your vessel's specific requirements.
Tasman winch types:
Models 6-6 6-4 8-8 8-6 Electric. motor DC DC DC DC Power 600W 600W 1000 W 1000 W Voltage (V) 12 or 24 12 or 24 12 or 24 12 or 24 Max tractive force - 1 turn on coil 700 kg 1540 lbs 700 kg 1540 lbs 1000 kg 2200 lbs 1000 kg 2200 lbs Max traction - full coil & nbsp; & nbsp; 100 kg 220 lbs 100 kg 220 lbs 350 kg 770 lbs 350 kg 770 lbs Lifting speed - 1 turn on the coil 50 m/min 50 m/min 60 m/min 60 m/min Lifting Speed - Full Coil 7.5 m/min 13 m/min 13 m/min 13 m/min Cable 6mm MAX cable x 70m 4mm UHMWPE x 100m + 6mm MAX cable x 10m 8 mm MAXcable x 100 m 6mm MAXcable x 150m Chain 6mm Short Link DIN766 x 10m 6mm Short Link DIN766 x 10m 8 mm Short Link DIN766 x 10 m 6 mm Short Link DIN766 x 10 m Net weight (incl. growth/chain) 24 kg 24 kg 37 kg 31 kg
Articles according to the Vetus catalog: P102872, P102874, P102876, P102877, P102878, P102879, P102883, P102884, P102873, P102875Documents
User's manual - Maxwell TASMAN Size: 4,7 MbMaxwell Tasman Heavy Duty Winch Size: 859,5 Kb -
