ID
1293890
$ 1,799.29
1-2 weeks delivery time
-
+
The Tecma T-E2G024PW/P02C00 Elegance 2G Short is a compact 24V marine toilet designed for installation on a 10 cm (3.9 in) raised step, reducing the ceramic bowl height to 36 cm (14.2 in) while maintaining a comfortable seating height of 46 cm (18.1 in). Equipped with an All-in-One SFT control panel, polyester-coated wooden seat, MAC 11 outlet pump, solenoid inlet valve, and water consumption of just 0.5–2.7 L per flush, it offers flexible installation and dependable marine sanitation performance.
- Description
- Ask a Question
-

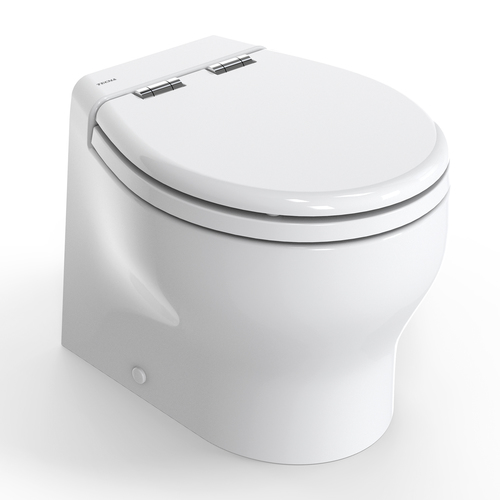

Tecma T-E2G024PW/P02C00 24V Elegance 2G Short Marine Toilet with All-in-One SFT Panel
The Tecma T-E2G024PW/P02C00 Elegance 2G Short is part of Tecma's Flexi Line collection, engineered for yachts and boats where onboard space must be used efficiently without compromising comfort. Designed for installation on a raised platform approximately 10 cm (3.9 in) high, the toilet features a reduced ceramic bowl height of 36 cm (14.2 in), resulting in a comfortable seating height of 46 cm (18.1 in).
Powered by a 24V electrical system, this model incorporates Tecma's second-generation marine sanitation technology together with an All-in-One SFT control panel, a polyester-coated wooden seat, a reliable MAC 11 discharge pump, and a standard solenoid inlet valve. The toilet can be installed in either above-floor or through-floor configurations, providing maximum flexibility for different yacht layouts.
Key Features
- 24V electric marine toilet
- Compact Elegance 2G Short design
- Designed for installation on a 10 cm (3.9 in) raised step
- 36 cm (14.2 in) ceramic bowl height
- 46 cm (18.1 in) seating height
- Polyester-coated wooden seat and cover

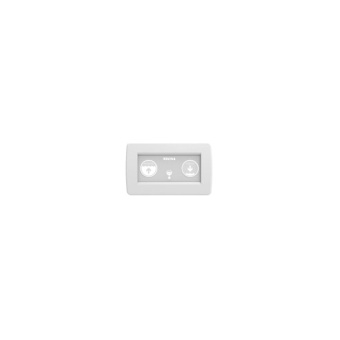

- All-in-One SFT control panel
- MAC 11 discharge pump
- Standard solenoid water inlet valve
- Compatible with Bidet Elegance 2G Short
- Second-generation Tecma sanitation system
Installation Options
- Above-floor installation: Flush motor and hoses remain above the floor, eliminating the need for floor cut-outs and simplifying installation.
- Through-floor installation: Requires a floor opening while providing increased bowl capacity and enhanced user comfort.
Technical Specifications
Specification Value Manufacturer Tecma Manufacturer Part Number T-E2G024PW/P02C00 Series Elegance 2G Short Operating Voltage 24V DC Ceramic Bowl Height 36 cm (14.2 in) Recommended Seating Height 46 cm (18.1 in) Recommended Installation Step 10 cm (3.9 in) Seat & Cover Polyester-coated wood Standard Color White Optional Colors Bone / Black Control Panel All-in-One SFT Optional Control Panels Multiframe SFT / Touch SFT Multifunction Water Inlet Device Solenoid valve Outlet Pump MAC 11 (12/24V) Water Consumption 0.5–2.7 L (0.1–0.7 gal) per flush Compatible Bidet Bidet Elegance 2G Short
Benefits
- Compact design maximizes usable bathroom space.
- Raised-step installation maintains a comfortable seating height.
- Flexible installation supports both above-floor and through-floor layouts.
- Reliable MAC 11 pump delivers dependable flushing performance.
- Low water consumption helps conserve onboard freshwater.
- Compatible with the matching Elegance 2G Short bidet for a complete onboard bathroom solution.
Applications
The Tecma T-E2G024PW/P02C00 is ideal for sailing yachts, motor yachts, catamarans, and other vessels requiring a compact, premium marine toilet with flexible installation options. Its efficient design, advanced Tecma technology, and reliable flushing system make it an excellent choice for modern onboard sanitation systems.
-
