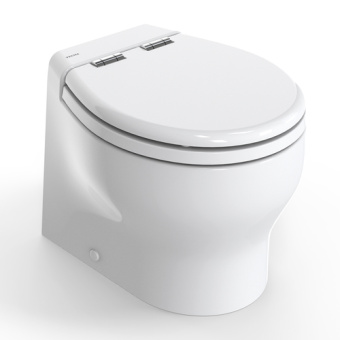

Tecma T-E2G024PW/S01C00 - 24V Elegance 2G Short Marine Toilet All-In-One Standard Panel Thermosetting Soft Closing

ID 894180

$ 2,090.31

1-2 weeks delivery time

- +

Add to cart

The Tecma T-E2G024PW/S01C00 Elegance 2G Short is a compact 24V marine toilet designed for installation on a 10 cm (3.9 in) raised step, featuring a reduced ceramic bowl height of 36 cm (14.2 in) while maintaining a comfortable seating height of 46 cm (18.1 in). Equipped with a thermosetting soft-closing seat, one-button All-in-One SFT control panel, MAC 11 outlet pump, standard solenoid inlet valve, and water consumption of just 0.5–2.7 L per flush, it provides reliable performance and flexible installation for modern yachts.

Description
Ask a Question

Tecma T-E2G024PW/S01C00 24V Elegance 2G Short Marine Toilet with Thermosetting Soft-Closing Seat

The Tecma T-E2G024PW/S01C00 Elegance 2G Short is a premium electric marine toilet from Tecma's Flexi Line collection, developed for yachts and boats where space optimization is essential. Designed for installation on a raised platform approximately 10 cm (3.9 in) high, the toilet features a reduced ceramic bowl height of 36 cm (14.2 in), providing a comfortable seating height of 46 cm (18.1 in) while maximizing available onboard space.

Powered by a 24V electrical system, this model combines Tecma's second-generation sanitation technology with a thermosetting soft-closing seat, a one-button All-in-One SFT control panel, a reliable MAC 11 discharge pump, and a standard solenoid water inlet valve. It supports both above-floor and through-floor installation, making it suitable for a wide variety of marine bathroom layouts.

Key Features

24V electric marine toilet
Compact Elegance 2G Short design
Designed for installation on a 10 cm (3.9 in) raised step
36 cm (14.2 in) ceramic bowl height
46 cm (18.1 in) seating height
Thermosetting soft-closing seat and cover
One-button All-in-One SFT control panel
MAC 11 discharge pump
Standard solenoid water inlet valve
Compatible with Bidet Elegance 2G Short
Second-generation Tecma sanitation technology

Installation Options

Above-floor installation: Eliminates the need for floor cut-outs by locating the flush motor and pipework above the floor, simplifying installation.
Through-floor installation: Requires a floor opening while providing increased bowl capacity and additional user comfort.

Technical Specifications

Specification	Value
Manufacturer	Tecma
Manufacturer Part Number	T-E2G024PW/S01C00
Series	Elegance 2G Short
Operating Voltage	24V DC
Ceramic Bowl Height	36 cm (14.2 in)
Recommended Seating Height	46 cm (18.1 in)
Recommended Installation Step	10 cm (3.9 in)
Seat & Cover	Thermosetting with soft-closing mechanism
Standard Color	White
Optional Colors	Bone / Black
Control Panel	All-in-One SFT (1-button)
Optional Control Panels	Multiframe / Argent / Touch / Premium / Premium Touch
Water Inlet Device	Standard solenoid valve
Outlet Pump	MAC 11 (12/24V)
Optional Outlet Pump	MAC 11 (110/230V)
Water Consumption	0.5–2.7 L (0.1–0.7 gal) per flush
Compatible Bidet	Bidet Elegance 2G Short

Benefits

Raised-step installation maximizes usable bathroom space.
Thermosetting soft-closing seat delivers quiet, comfortable operation.
Compact dimensions make the toilet ideal for modern yacht interiors.
Reliable MAC 11 discharge pump ensures efficient flushing performance.
Low water consumption helps reduce onboard freshwater usage.
Flexible installation options simplify integration into different vessel layouts.

Applications

The Tecma T-E2G024PW/S01C00 is an ideal solution for sailing yachts, motor yachts, catamarans, and other vessels requiring a premium compact marine toilet. Its space-saving design, reliable Tecma technology, and versatile installation options provide an excellent combination of comfort, durability, and long-term performance for modern onboard sanitation systems.
