ID
1345008
$ 1,772.55
1-2 weeks delivery time
-
+
Exalto EWT 285BS Compact 40° is a 24 V HD2 bulkhead-mounted wiper motor delivering 85 Nm torque with a fixed 40° wiping angle. It offers self-parking, interval speed control, and reliable performance for professional installations.
- Description
- Ask a Question
-

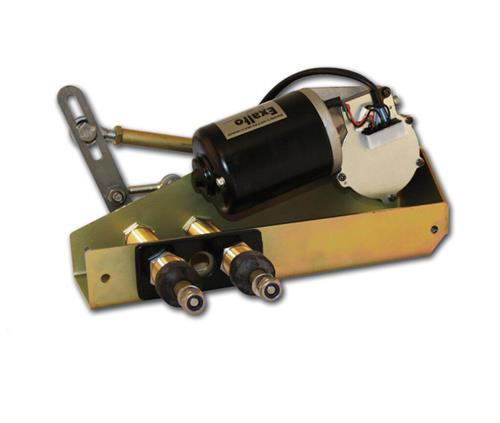

Exalto EWT Wiper 285BS Compact 24V 40° 85Nm Bulkhead 25mm
The Exalto EWT 285BS Compact 40° is a robust wiper motor engineered for precise and controlled wiping. Operating on 24V DC, this HD2 series motor delivers 85 Nm of torque and features a fixed 40° wiping angle. Its bulkhead mounting design, combined with self-parking and interval speed control, makes it suitable for demanding professional installations.
Key Features
- Fixed 40° wiping angle
- 24V DC bulkhead-mounted wiper motor
- 85 Nm torque output
- Self-parking function
- Speed interval control
- Ungrounded design
Technical Data
Sales Unit 1 piece Voltage 24 V Type VDC Power 85 W Torque 85 Nm Angle Of View 40° Driven Axles 2 Drive Shaft Diameter 25.5 mm Shaft Length 93 mm Wall Thickness 25 mm Distance HoH 60 mm Arm Type HD2 P12 Maximum Arm Length 1500 mm Maximum Blade Length 1200 mm Recommended Fuse Rating 15 A Maximum Amperage 12 A Ungrounded yes Product Width 355 mm Product Depth 250 mm Product Height 170 mm Series HD2
Brand: Exalto Wiper Technologies B.V. (Article code: 2178.085-40) (Barcode: 8720763543607)
-
