ID
1344958
$ 711.50
1-2 weeks delivery time
-
+
Exalto EWT Wiper 232BD 24V 70° model is a bulkhead-mounted MD1 pendulum wiper motor delivering 32Nm torque, dual-speed operation with interval control, self-parking function, ungrounded design, and compatibility with 75mm wall thickness.
- Description
- Ask a Question
-

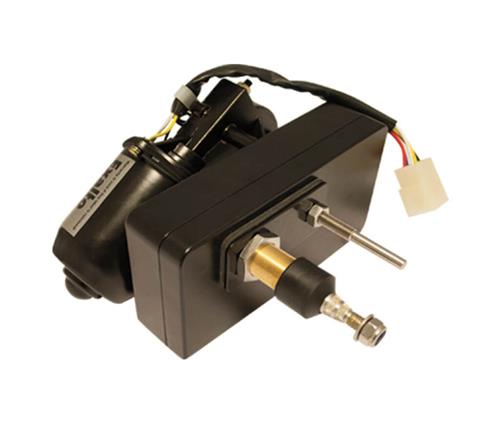

Exalto EWT Wiper 232BD 24V 70° 32Nm Bulkhead 75mm
The Exalto EWT 232BD is a 24V DC bulkhead-mounted wiper motor designed for MD1 series pendulum arm systems. This model delivers a 70° wiping angle and 32Nm torque, suitable for consistent wiping performance. It supports two speed levels with interval control and includes a self-parking function. The motor is intended for installation through a 75mm wall thickness.
Main Characteristics
- Pendulum wiper motor for MD1 series
- Single driven axle
- Two speeds with speed interval
- Self-parking function
- Ungrounded design
Technical Data

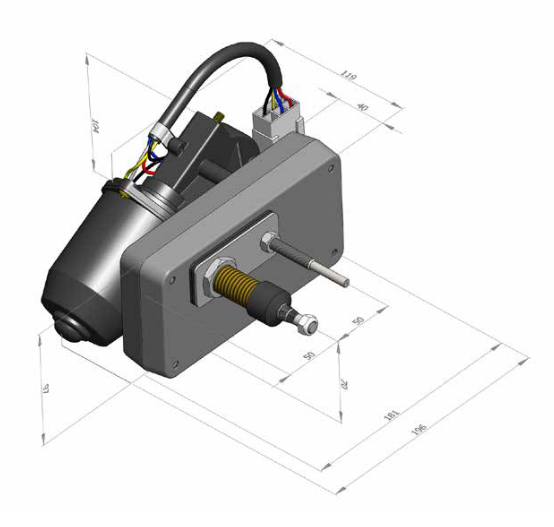

Sales Unit 1 Pieces Voltage (V) 24 Type VDC Power (W) 40 Torque (Nm) 32 Wiping Angle (°) 70° High Speed (rpm) 56 Low Speed (rpm) 38 Maximum Amperage (A) 1.5 Recommended Fuse Rating (A) 4 Driven Axles 1 Arm Type MD1 PENDULUM Suitable For MD1 series Series MD1 Drive Shaft Diameter (mm) 19 Support Shaft Diameter (mm) 6.4 Shaft Length (mm) 130 Distance HoH (mm) 50 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 800 Wall Thickness (mm) 75 Product Width (mm) 200 Product Depth (mm) 254 Product Height (mm) 106
Brand: Exalto Wiper Technologies B.V. (Article code: 2158.40-70) (Barcode: 8720763536531)
-
