Exalto EWT Wiper 232BD 24V 60° version offers 32Nm torque with MD1 pendulum arm compatibility, dual-speed operation, interval function, self-parking, ungrounded construction, and is designed for 75mm bulkhead installations.
- Description
- Ask a Question
-

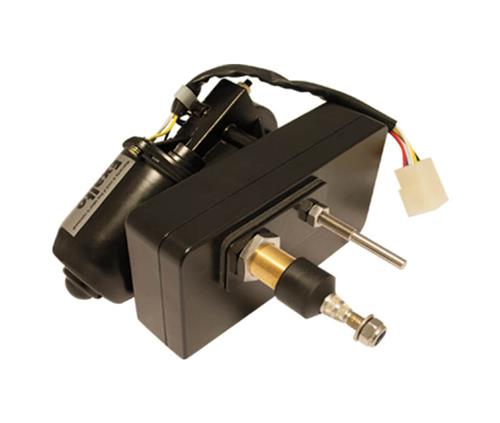

Exalto EWT Wiper 232BD 24V 60° 32Nm Bulkhead 75mm
This Exalto EWT Wiper 232BD model operates at 24V and offers a 60° wiping angle with a consistent torque of 32Nm. It incorporates a pendulum arm type with self-parking and speed interval capabilities, suitable for MD1 series installations. The wiper is designed to be ungrounded, enhancing its safety and reliability.
Key Features
- Voltage: 24 VDC
- Wiping Angle: 60°
- Torque: 32 Nm
- Arm Type: Pendulum MD1
- Self-Parking: Yes
- Speed Interval: Yes
- Ungrounded: Yes
- Recommended Fuse Rating: 4 A
- Maximum Amperage: 1.5 A
- Maximum Arm Length: 750 mm
- Maximum Blade Length: 800 mm
Technical Specifications

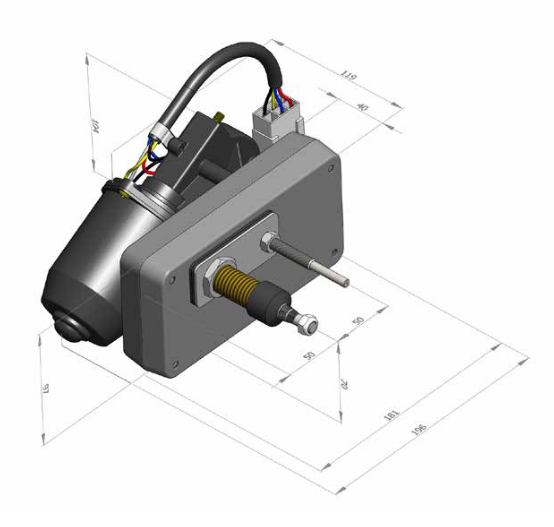

Article 2158.40-60 Sales Unit 1 Piece Drive Shaft Diameter 19 mm Support Shaft Diameter 6.4 mm Distance HoH 50 mm Shaft Length 130 mm High Speed 56 rpm Low Speed 38 rpm Power 40 W Product Width 200 mm Product Depth 254 mm Product Height 106 mm Wall Thickness 75 mm Driven Axles 1 Series MD1
Brand: Exalto Wiper Technologies B.V. Article: 2158.40-60 EAN Code: 8720763536517
-
