ID
1344883
$ 673.70
1-2 weeks delivery time
-
+
The Exalto EWT wiper 232BD 12 V 75° offers wide wiping coverage with self-parking, speed interval operation, and high torque output, making it suitable for professional MD1 installations.
- Description
- Ask a Question
-

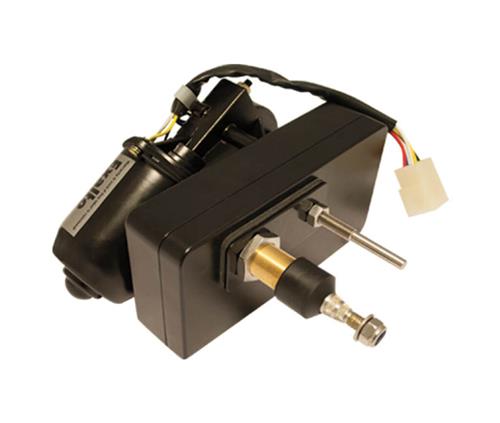

Exalto EWT Wiper 232BD 12V 75° 32Nm Bulkhead 20mm
The Exalto EWT 232BD 12V with a 75° wiping angle provides wide wiping coverage and dependable performance. This MD1 series pendulum wiper motor features self-parking, speed interval operation, and high torque output, making it ideal for professional bulkhead-mounted installations.
Key Features
- Self-parking pendulum wiper motor
- Speed interval: yes
- 32 Nm torque for demanding applications
- Bulkhead mounting configuration
- Compatible with MD1 series systems

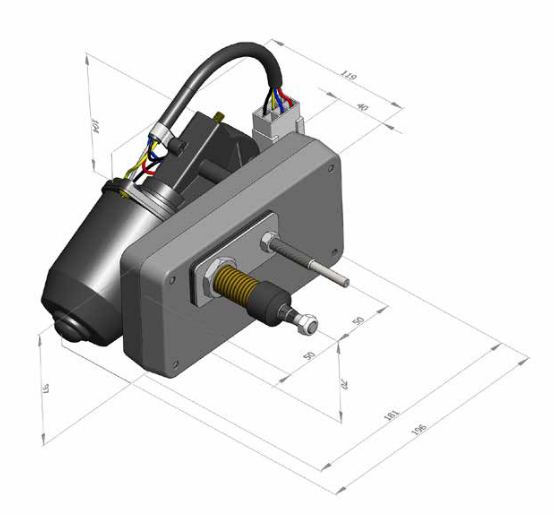

Technical Data
Sales Unit 1 Pieces Voltage (V) 12 VDC Power (W) 40 Torque (Nm) 32 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Support Shaft Diameter (mm) 6.4 Shaft Length (mm) 79 Distance HoH (mm) 50 Wiping Angle (°) 75° Arm Type MD1 PENDULUM Driven Axles 1 High Speed (rpm) 56 Low Speed (rpm) 38 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 800 Product Width (mm) 200 Product Depth (mm) 202 Product Height (mm) 106 Series MD1 Type (VAC / VDC) VDC Wall Thickness (mm) 20
Brand: Exalto Wiper Technologies B.V. (Article code: 2157.30-75 / Barcode: 8720763535770)
-
