ID
1345068
$ 514.50
1-2 weeks delivery time
-
+
The Exalto EWT 223KGO 12V wiper motor for the MD1 series delivers a 65° angle of view, 23 Nm torque, and reliable performance. It has a pendulum MD1 arm type, speed interval function, self-parking, and compact construction for 17 mm glass.
- Description
- Ask a Question
-
Exalto EWT Wiper 223KGO 12V 65° 23Nm Glass 17mm

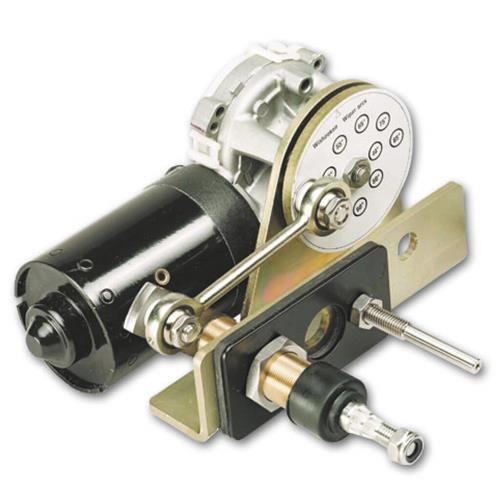

The Exalto EWT 223KGO 12V wiper motor is designed for the MD1 series and provides extended wiping coverage with a 65° angle of view. Featuring a pendulum MD1 arm type, speed interval function, and self-parking, this compact motor delivers 23 Nm torque for reliable performance on glass with a wall thickness of 17 mm.
Key Features
- Pendulum arm type MD1
- Speed interval function
- Self-parking function
- Ungrounded design
- Compact and efficient construction
Technical Data

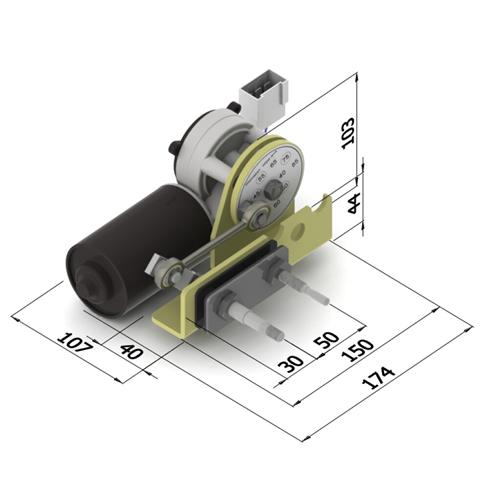

Article Code XA2125-65 Sales Unit 1 piece Series MD1 Suitable For MD1 series Arm Type PENDULUM MD1 Drive Shaft Diameter 9.5 mm Distance HoH 50 mm Angle of View 65° Driven Axles 1 Torque 23 Nm Voltage 12 V Type VDC Power 36 W High Speed 65 rpm Low Speed 47 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Shaft Length 64 mm Wall Thickness 17 mm Maximum Arm Length 450 mm Maximum Blade Length 500 mm Product Width 150 mm Product Depth 173 mm Product Height 90 mm EAN Code 8720763537316
Brand: Exalto Wiper Technologies B.V. Article code: XA2125-65 Barcode: 8720763537316
-
