ID
1345067
$ 514.50
1-2 weeks delivery time
-
+
The Exalto EWT 223KGO 12V wiper motor provides extended coverage with a 60° angle of view and 23 Nm torque. It features a pendulum MD1 arm type, speed interval function, self-parking, and a compact design for 17 mm thick glass.
- Description
- Ask a Question
-
Exalto EWT Wiper 223KGO 12V 60° 23Nm Glass 17mm

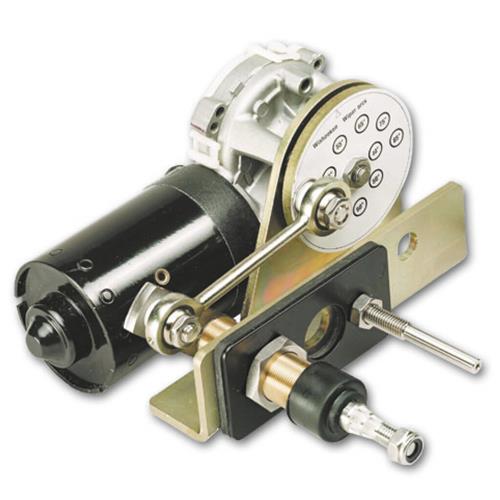

The Exalto EWT 223KGO 12V wiper motor is designed for the MD1 series and offers extended wiping coverage with a 60° angle of view. Featuring a pendulum MD1 arm type, speed interval function, and self-parking, it delivers 23 Nm torque and reliable performance for glass installations with a wall thickness of 17 mm.
Key Features
- Pendulum arm type MD1
- Speed interval function
- Self-parking system
- Ungrounded design
- Compact and reliable
Technical Data

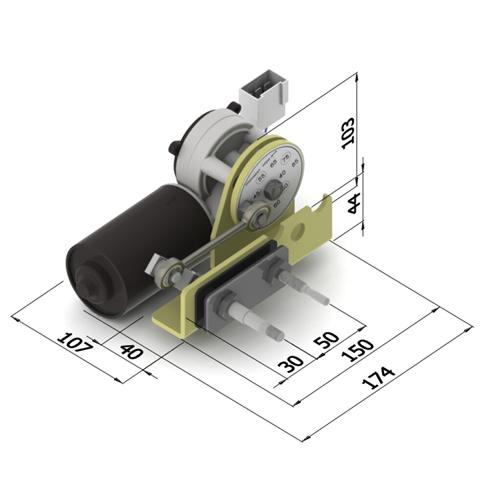

Article Code XA2125-60 Sales Unit 1 piece Series MD1 Suitable For MD1 series Arm Type PENDULUM MD1 Drive Shaft Diameter 9.5 mm Distance HoH 50 mm Angle of View 60° Driven Axles 1 Torque 23 Nm Voltage 12 V Type VDC Power 36 W High Speed 65 rpm Low Speed 47 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Shaft Length 64 mm Wall Thickness 17 mm Maximum Arm Length 450 mm Maximum Blade Length 500 mm Product Width 150 mm Product Depth 173 mm Product Height 90 mm EAN Code 8720763537309
Brand: Exalto Wiper Technologies B.V. Article code: XA2125-60 Barcode: 8720763537309
-
