ID
1345429
$ 439.97
1-2 weeks delivery time
-
+
Exalto EWT 223BS 12V 75° wiper motor is a bulkhead-mounted MD1 unit with pendulum arm type, speed interval function, and self-parking. It delivers 23 Nm torque and supports arm and blade lengths up to 750 mm.
- Description
- Ask a Question
-

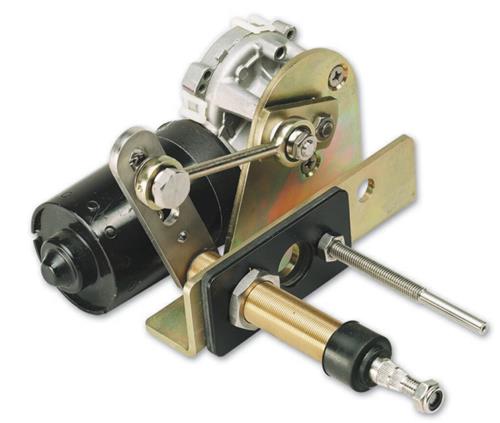

Exalto EWT Wiper 223BS 12V 75° 23Nm Bulkhead 35mm
The Exalto EWT 223BS 75° wiper motor offers an extended wiping angle combined with compact bulkhead mounting. Part of the MD1 series, this 12V DC motor includes speed interval control, self-parking, and a pendulum arm type for consistent operation.
Key Features
- 75° angle of view
- Pendulum arm type
- Speed interval and self-parking
- Ungrounded 12V DC motor
- Bulkhead installation
Technical Data
Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 12 Type VDC Power (W) 36 Torque (Nm) 23 Angle Of View (°) 75° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 91 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Wall Thickness (mm) 35 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 200 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2167.32-75) (Barcode: 8720763542136)
-
