ID
1345427
$ 439.97
1-2 weeks delivery time
-
+
Exalto EWT 223BS 12V 65° wiper motor combines wide wiping coverage with 23 Nm torque in a bulkhead-mounted MD1 design. It includes pendulum arm operation, speed interval function, self-parking, and support for arms and blades up to 750 mm.
- Description
- Ask a Question
-

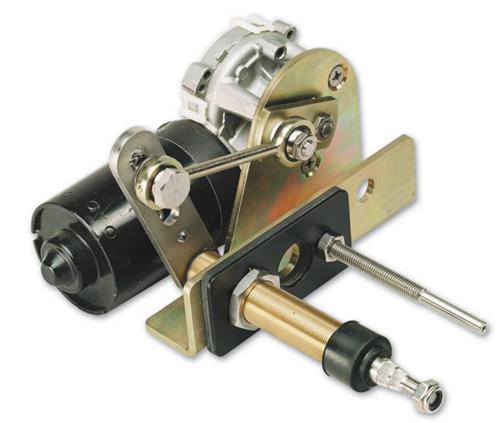

Exalto EWT Wiper 223BS 12V 65° 23Nm Bulkhead 35mm
The Exalto EWT 223BS 65° wiper motor provides a wide wiping angle combined with strong 23 Nm torque. Built for the MD1 series, this 12V DC bulkhead-mounted motor includes speed interval control, self-parking, and supports long arms and blades up to 750 mm.
Key Features
- Wide 65° angle of view
- Pendulum arm type for MD1 series
- Speed interval function
- Automatic self-parking
- Compact bulkhead installation
Technical Data
Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 12 Type Of Voltage VDC Power (W) 36 Torque (Nm) 23 Angle Of View (°) 65° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 91 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Wall Thickness (mm) 35 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 200 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2167.32-65) (Barcode: 8720763542112)
-
