ID
1345439
$ 443.40
1-2 weeks delivery time
-
+
Exalto EWT 223BS 12V 65° delivers wide wiping coverage in a 55 mm bulkhead-mounted MD1 design, featuring a pendulum arm type, speed interval function, self-parking, and 23 Nm torque.
- Description
- Ask a Question
-

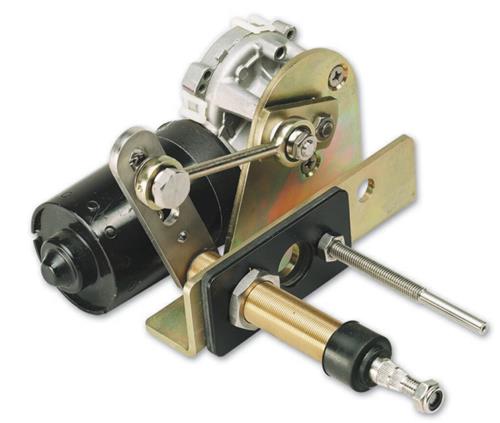

Exalto EWT Wiper 223BS 12V 65° 23Nm Bulkhead 55mm
The Exalto EWT 223BS 65° wiper motor delivers extended wiping coverage with the same reliable MD1 series performance. This 12V DC bulkhead-mounted motor is designed for 55 mm wall thickness and features speed interval control, self-parking, and a pendulum arm type.
Key Features
- 65° angle of view
- Pendulum arm type for MD1 series
- Speed interval function
- Self-parking system
- Bulkhead mounting up to 55 mm
Technical Data

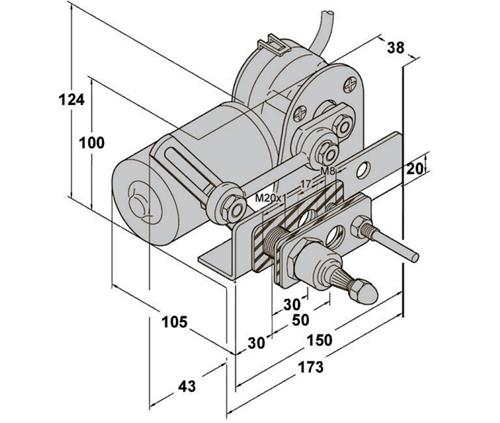

Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 12 Type VDC Power (W) 36 Torque (Nm) 23 Angle Of View (°) 65° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 111 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Wall Thickness (mm) 55 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 220 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2167.35-65) (Barcode: 8720763542334)
-
