Exalto EWT 223BS 12V 60° wiper motor offers extended wiping coverage with MD1 reliability, designed for 55 mm bulkhead mounting and equipped with pendulum arm type, speed interval control, self-parking, and 23 Nm torque.
- Description
- Ask a Question
-

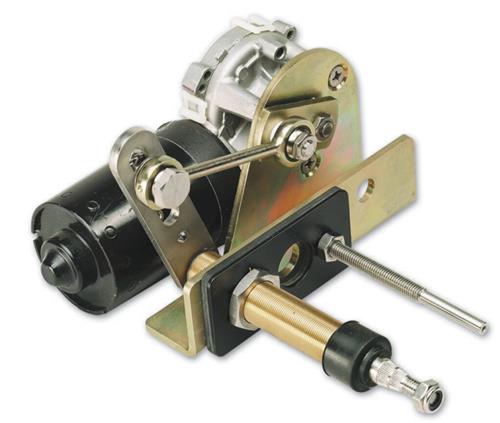

Exalto EWT Wiper 223BS 12V 60° 23Nm Bulkhead 55mm
The Exalto EWT 223BS 60° wiper motor offers a wider wiping angle while maintaining a compact bulkhead design for walls up to 55 mm thick. This 12V DC motor from the MD1 series includes speed interval control, self-parking, and a durable pendulum arm type.
Key Features
- 60° angle of view
- Pendulum arm type
- Speed interval and self-parking
- Ungrounded 12V DC motor
- Designed for thick bulkhead mounting
Technical Data

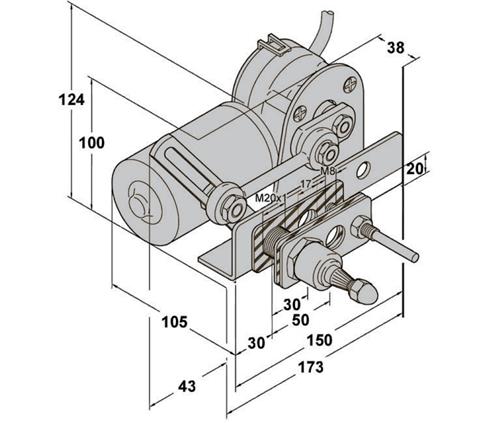

Sales Unit 1 piece Series MD1 Suitable For MD1 series Voltage (V) 12 Type VDC Power (W) 36 Torque (Nm) 23 Angle Of View (°) 60° Driven Axles 1 High Speed (rpm) 60 Low Speed (rpm) 40 Maximum Amperage (A) 3 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 19 Shaft Length (mm) 111 Distance HoH (mm) 50 Support Diameter (mm) 6.4 Wall Thickness (mm) 55 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Width (mm) 150 Product Depth (mm) 220 Product Height (mm) 90
Brand: Exalto Wiper Technologies B.V. (Article code: XA2167.35-60) (Barcode: 8720763542327)
-
