ID
1345345
$ 455.44
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 60° angle of view offers single-drive bulkhead installation with a pendulum wiping system, self-parking, and speed interval. With 25 Nm torque and support for arms and blades up to 750 mm, it ensures dependable performance.
- Description
- Ask a Question
-

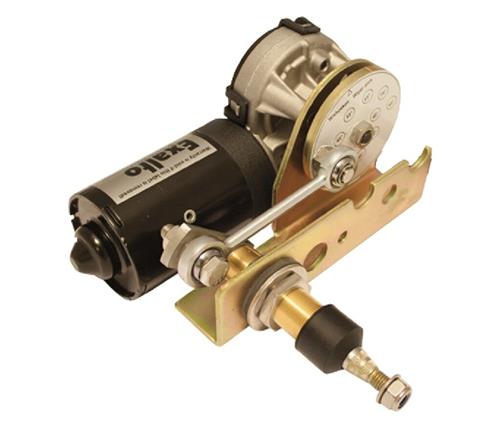

Exalto EWT Wiper 223BDS 24V 60° 25Nm Bulkhead 55mm Single
This Exalto EWT 223BDS 24V wiper motor offers a 60° angle of view and is designed for single-drive bulkhead mounting. The MD1 series construction includes a pendulum wiping system, self-parking, and speed interval. With a strong 25 Nm torque and compatibility with long arms and blades up to 750 mm, it ensures dependable wiping performance.
Key Features
- Single-drive configuration
- 60° pendulum wiping angle
- Self-parking resting position
- Speed interval function
- Bulkhead mounting design
Technical Data
Article Code XA2166.35S-60 Sales Unit 1 piece EAN Code 8720763541009 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View 60° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 112 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 221 mm Product Height 90 mm Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.35S-60)
-
