ID
1345348
$ 455.44
1-2 weeks delivery time
-
+
The Exalto EWT 223BDS 24V wiper motor with a 75° angle of view offers extended coverage in a single-drive bulkhead design with 55 mm wall thickness. It includes pendulum operation, self-parking, and speed interval, with 25 Nm torque and support for long arms and blades up to 750 mm.
- Description
- Ask a Question
-

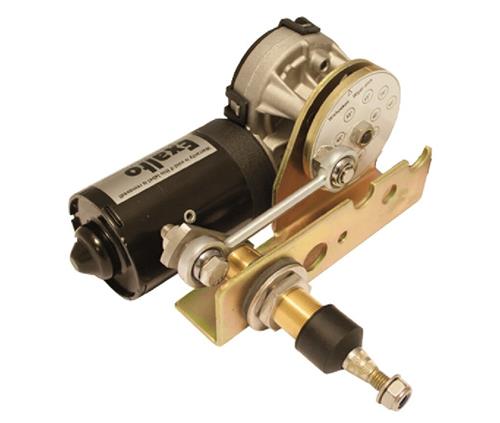

Exalto EWT Wiper 223BDS 24V 75° 25Nm Bulkhead 55mm Single
The Exalto EWT 223BDS 24V wiper motor with a 75° angle of view offers extended wiping coverage in a compact single-drive design. Designed for bulkhead mounting with a 55 mm wall thickness, this MD1 series wiper includes pendulum operation, self-parking, and speed interval. With 25 Nm torque and compatibility with long arms and blades up to 750 mm, it is ideal for demanding applications.
Key Features
- 75° pendulum wiping angle
- Single-drive wiper motor
- Self-parking function
- Speed interval available
- MD1 series compatibility
Technical Data
Article Code XA2166.35S-75 Sales Unit 1 piece EAN Code 8720763541030 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type Pendulum MD1 Driven Axles 1 Angle Of View 75° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 112 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 221 mm Product Height 90 mm Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.35S-75)
-
