The Exalto EWT 223BDS 24V single-drive wiper motor is designed for bulkhead mounting with a 55 mm wall. Featuring pendulum wiping, self-parking, and speed interval, it delivers 25 Nm torque and supports arms and blades up to 750 mm, with a configurable angle of view.
- Description
- Ask a Question
-

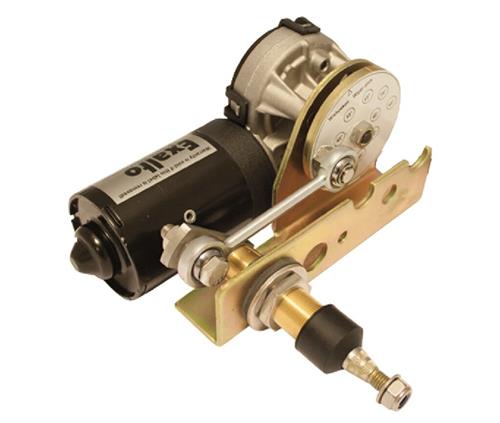

Exalto EWT Wiper 223BDS 24V ..° 25Nm Bulkhead 55mm Single
The Exalto EWT 223BDS 24V is a single-drive bulkhead-mounted wiper motor from the MD1 series. Designed for installations with a wall thickness of 55 mm, this wiper features a pendulum wiping system, self-parking, and speed interval. With a torque of 25 Nm and support for arms and blades up to 750 mm, it offers dependable wiping performance. The angle of view is configurable within the series range.
Key Features
- Single-drive wiper motor
- Pendulum wiping system
- Self-parking function
- Speed interval available
- Bulkhead mounting for 55 mm wall thickness
Technical Data
Article Code XA2166.35S Sales Unit 1 piece EAN Code 8720193091372 Brand Exalto Wiper Technologies B.V. Series MD1 Suitable For MD1 series Arm Type MD1 Driven Axles 1 Angle Of View ..° Voltage 24 V Type VDC Power 36 W Torque 25 Nm High Speed 60 rpm Low Speed 40 rpm Maximum Ampèrage 1.5 A Recommended Fuse Rating 4 A Ungrounded yes Drive Shaft Diameter 19 mm Shaft Length 112 mm Maximum Arm Length 750 mm Maximum Blade Length 750 mm Product Width 170 mm Product Depth 221 mm Product Height 90 mm Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.35S)
-
