ID
1345293
$ 742.30
1-2 weeks delivery time
-
+
Exalto EWT Wiper 223BD 24V bulkhead-mounted wiper with a 90° sweep and 25 Nm torque, intended for 20 mm wall thickness with insulated earth and switch. Suitable for MD1 arms, offering self-parking, speed interval, 19 mm shaft diameter, and 36 W output.
- Description
- Ask a Question
-

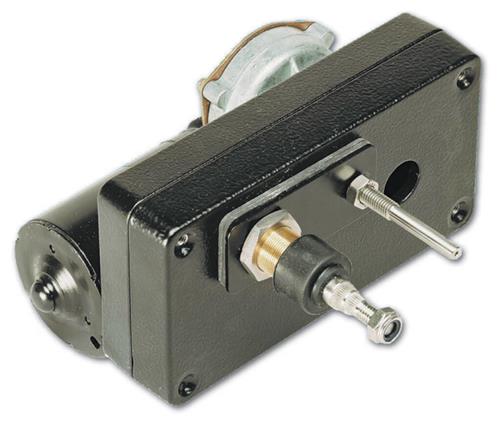

Exalto EWT Wiper 223BD 24V 90° 25Nm Bulkhead 20mm Insulated Earth With Switch
The Exalto EWT 223BD wiper with a 90° wiping angle is a powerful 24V DC motor designed for bulkhead mounting with a 20mm insulated earth connection. It delivers 25Nm torque and is compatible with the MD1 series arms. This model features self-parking and speed interval functions, ensuring efficient and reliable wiping performance for marine and industrial use.
Key Features
- Voltage: 24V DC
- Torque: 25Nm
- Angle of View: 90°
- Self-parking and speed interval enabled
- Drive shaft diameter: 19 mm
- Bulkhead mounting with 20 mm insulated earth
- Suitable for MD1 series arms
- Power consumption: 36 W
- Maximum blade and arm length: 750 mm
Technical Specifications
Article Code XA2166.30LSW-90 Sales Unit 1 piece Drive Shaft Diameter (mm) 19 Distance HoH (mm) 50 Arm Type MD1 Pendulum Shaft Length (mm) 20 EAN Code 8720763540071 Recommended Fuse Rating (A) 4 Ungrounded Yes Suitable For MD1 Series Driven Axles 1 Maximum Ampèrage (A) 1.5 Product Width (mm) 170 Product Depth (mm) 183 Product Height (mm) 90 Series MD1 Voltage Type VDC Shaft Support Diameter (mm) 6.4 High Speed (rpm) 60 Low Speed (rpm) 40 Power (W) 36 Wall Thickness (mm) 20
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.30LSW-90)
-
