Exalto EWT Wiper 223BD 24V bulkhead wiper with insulated earth and switch for MD1 series, offering a 45° sweep and 25 Nm torque. Suitable for 20 mm walls, it features an MD1 pendulum arm, 19 mm drive shaft, 20 mm shaft length, speed interval, self-parking, and 36 W output.
- Description
- Ask a Question
-

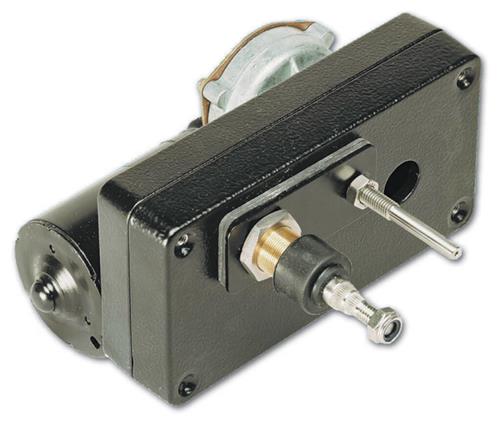

Exalto EWT Wiper 223BD 24V 45° 25Nm Bulkhead 20mm Insulated Earth With Switch
This Exalto EWT wiper model 223BD operates at 24 volts and features a 45° angle of view. Designed for bulkhead mounting with a 20mm insulated earth, it delivers a torque of 25Nm, ensuring reliable and powerful wiping performance. The wiper is part of the MD1 series and includes a switch for convenient control. It supports self-parking and speed interval functions, making it versatile for various marine and industrial applications.
Key Features
- Voltage: 24V DC
- Torque: 25Nm
- Angle of View: 45°
- Self-parking and speed interval enabled
- Drive shaft diameter: 19 mm
- Bulkhead mounting with 20 mm insulated earth
- Suitable for MD1 series arms
- Power consumption: 36 W
- Maximum blade and arm length: 750 mm
Technical Specifications
Article Code XA2166.30LSW-45 Sales Unit 1 piece Drive Shaft Diameter (mm) 19 Distance HoH (mm) 50 Arm Type MD1 Pendulum Shaft Length (mm) 20 EAN Code 8720763539983 Recommended Fuse Rating (A) 4 Ungrounded Yes Suitable For MD1 Series Driven Axles 1 Maximum Ampèrage (A) 1.5 Product Width (mm) 170 Product Depth (mm) 183 Product Height (mm) 90 Series MD1 Voltage Type VDC Shaft Support Diameter (mm) 6.4 High Speed (rpm) 60 Low Speed (rpm) 40 Power (W) 36 Wall Thickness (mm) 20
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.30LSW-45)
-
