ID
1345283
$ 742.30
1-2 weeks delivery time
-
+
Exalto EWT Wiper 223BD 24V bulkhead-mounted wiper with insulated earth and switch, featuring a 40° sweep and 25 Nm torque. Designed for MD1 series and 20 mm wall thickness, it uses an MD1 pendulum arm, 19 mm shaft diameter, 20 mm shaft length, speed interval, self-parking, and 36 W power.
- Description
- Ask a Question
-

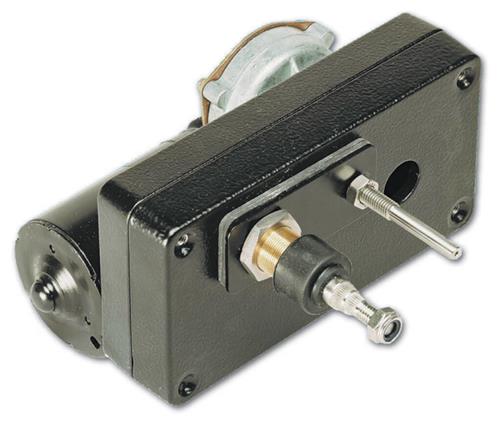

Exalto EWT Wiper 223BD 24V 40° 25Nm Bulkhead 20mm Insulated Earth With Switch
The Exalto EWT wiper 223BD 24V with a 40° angle of view features an insulated earth and switch for enhanced safety. It delivers 25 Nm torque and is designed for bulkhead mounting with a 20mm wall thickness. This model uses the MD1 pendulum arm type and supports speed interval and self-parking functions, suitable for the MD1 series.
Key Features
- Voltage: 24 VDC
- Torque: 25 Nm
- Angle of View: 40°
- Insulated earth with switch
- Self-parking and speed interval enabled
- Drive shaft diameter: 19 mm
- Shaft length: 20 mm
- Maximum arm and blade length: 750 mm
- Recommended fuse rating: 4 A
- Power consumption: 36 W
- Wall thickness compatibility: 20 mm
Technical Specifications
Article XA2166.30LSW-40 Sales Unit 1 piece Distance HoH (mm) 50 Shaft Length (mm) 20 EAN Code 8720763539976 Ungrounded Yes Driven Axles 1 Maximum Ampèrage (A) 1.5 Product Width (mm) 170 Product Depth (mm) 183 Product Height (mm) 90 Series MD1 Shaft Support Diameter (mm) 6.4 High Speed (rpm) 60 Low Speed (rpm) 40
Brand: Exalto Wiper Technologies B.V. (Article code: XA2166.30LSW-40)
-
