Exalto EWT Wiper 223BD 12V bulkhead-mounted wiper for MD1 applications with a 70° sweep angle and 23 Nm torque. Includes MD1 pendulum arm, 19 mm shaft diameter, 112 mm shaft length suitable for 55 mm bulkheads, speed interval, self-parking, and 36 W power.
- Description
- Ask a Question
-

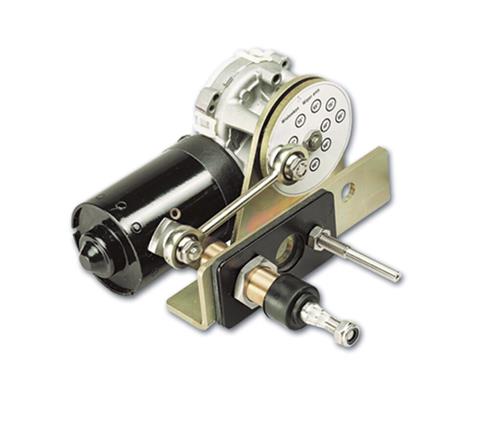

Exalto EWT Wiper 223BD 12V 70° 23Nm Bulkhead 55mm
The Exalto EWT Wiper 223BD 12V with a 70° angle of view is a bulkhead-mounted wiper designed for the MD1 series. It delivers 23 Nm torque and features a pendulum MD1 arm type. The wiper has a 19 mm drive shaft diameter and a shaft length of 112 mm, suitable for 55 mm thick bulkheads. It supports speed interval control and self-parking for reliable operation.
Key Features
- Voltage: 12 VDC
- Angle of View: 70°
- Torque: 23 Nm
- Drive Shaft Diameter: 19 mm
- Arm Type: MD1 Pendulum
- Shaft Length: 112 mm
- Distance HoH (center-to-center): 50 mm
- Speed Interval: Yes
- Self-Parking: Yes
- Ungrounded: Yes
- Recommended Fuse Rating: 6 A
- Maximum Ampèrage: 3 A
- Maximum Arm Length: 750 mm
- Maximum Blade Length: 800 mm
- Wall Thickness: 55 mm
- Shaft Support Diameter: 6.4 mm
- Power: 36 W
- High Speed: 56 rpm
- Low Speed: 38 rpm
Technical Specifications
Article XA2165.35-70 Sales Unit 1 piece Product Width (mm) 170 Product Depth (mm) 218 Product Height (mm) 90 Series MD1 Type VDC Driven Axles 1 Ean Code 8720763539525
Brand: Exalto Wiper Technologies B.V. (Article code XA2165.35-70)
-
