ID
1345261
$ 445.13
1-2 weeks delivery time
-
+
Exalto EWT Wiper 223BD 12V bulkhead-mounted wiper for MD1 series with 40° sweep and 23 Nm torque, designed for 75 mm wall thickness. Features MD1 pendulum arm, 19 mm shaft diameter, 132 mm shaft length, speed interval, self-parking, ungrounded design, and 36 W power.
- Description
- Ask a Question
-

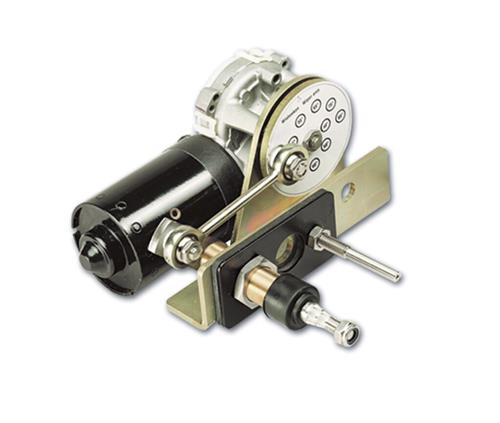

Exalto EWT Wiper 223BD 12V 40° 23Nm Bulkhead 75mm
The Exalto EWT Wiper 223BD is a robust 12V wiper motor designed for bulkhead mounting with a 75mm wall thickness. Featuring a 40° angle of view and a torque of 23Nm, this model is part of the MD1 series, ideal for reliable and efficient wiper operation.
Key Features
- Drive shaft diameter: 19 mm
- Distance Hole-to-Hole (HoH): 50 mm
- Arm type: MD1 Pendulum
- Speed interval and self-parking functions
- Shaft length: 132 mm
- Ungrounded design
- Recommended fuse rating: 6 A
- Voltage: 12 V DC
- Maximum arm length: 750 mm
- Maximum blade length: 800 mm
- Power consumption: 36 W
Technical Specifications
Article Code XA2165.40-40 EAN Code 8720763539686 Angle of View 40° Torque 23 Nm Driven Axles 1 Maximum Ampèrage 3 A Product Width 170 mm Product Depth 238 mm Product Height 90 mm Series MD1 Shaft Support Diameter 6.4 mm High Speed (rpm) 56 Low Speed (rpm) 38 Wall Thickness 55 mm
Brand: Exalto Wiper Technologies B.V. (Article code XA2165.40-40)
-
